MVC S40
Microsoft Teams Rooms System
for Small and Medium Meeting Rooms
S98 구성

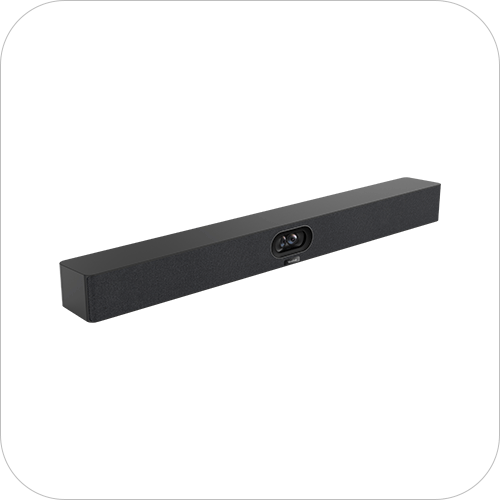

SmartVision 40
MTouch plus
MCore 4
RoomSensor
Key Features
Dual Eye
Camera System
Intelli
Focus
Future-proof
Computing
Seamless ProAV
Integration
Video
Fence
6m pick-up
range
- Microsoft Teams 네이티브 통합을 통한 원활한 회의 경험
- Ultra HD 화질과 AI 기반 지능형 기능
- 고품질 음성 픽업 경험
- 뛰어난 데이터 처리 성능
- 협업을 강화하는 실시간 콘텐츠 공유
- 간편한 구축과 쉬운 사용
- 원격 디바이스 관리 지원
Specifications
| Package Content | • MCore 4 • MTouch plus • RoomSensor • SmartVision 40, all-in-one audio and video integration machine |
| Preload | • Windows 11 IoT enterprise X64 • Windows 11 IoT enterprise license • Microsoft Teams rooms app • Yealink RoomConnect |
| MCore 4, Gen-4 Mini-PC | • Processor: Intel Ultra5 125H • Memory: 16GB(2*8GB) DDR5 • Storage: 256GB SSD BIOS feature: • 3x HDMI video output - CEC - EDID • TPM2.0 • Kernel DMA Interfaces: • 1 x HDMI-Out 2.1 port • 2 x HDMI-Out 2.0 port • 1 x HDMI-In port • 4 x USB3.0 type-A port • 1 x MTouch port (RJ-45) • 1 x LAN port for AV network • 1 x power supply port • 1 x 3.5mm headphone port • 1 x reset port • 1 x security slot • WiFi: IEEE 802.11 a/b/g/n/ac/ax • Bluetooth: BT 5.2 |
| MTouch Plus | Physical features: • 11.6-inch narrow bezel IPS display • Angle between screen and desktop (30° ~ 70°) • Adjustable angle of support frame (50° ~ 180°) Function features： • 1920 x 1080 video resolution • Support wired and wireless (with WPP30) content sharing • Support an external PD power supply to power the sharing device • Support HDMI/USB-C video input • Support desktop placement, desktop fixed, and wall-mounted deployment |
| RoomSensor | • Detection angle: 120° • Adjustable detection angle: ±20° • Operating temperature: 0-40℃ • Operating humidity: 10-95% |
| SmartVision 40 | Camera: • 2x 48 MP camera • DFOV: 120° • HFOV: 111° Speakers: • 2 x 10W stereo speakers • Speaker: 78.78dBSPL@0.5m Interfaces: • 1x USB3.0 Type-B port • 1x USB2.0 Type-A port • 1x USB-C port • 1x Yealink VCH port（RJ-45） • 1x 3.5mm line-in & line-out port • 1x power port • 1x security lock slot • 1x reset slot • 1x HDMI-out Function features： • Built-in Wi-Fi • Support IntelliFocus • Support Multi-Stream IntelliFrame (on device) • Support video fence • Support 2 x expansion microphone |
