MVC S50
Microsoft Teams Rooms System
for Small and Medium Meeting Rooms
MVC S50 구성

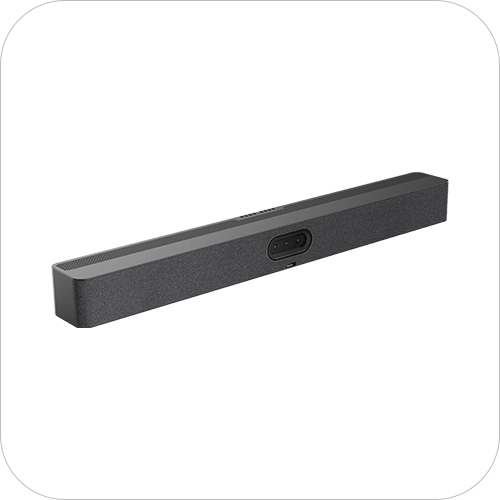

MeetingBar A50
MTouch plus
MCore 4
RoomSensor
Key Features
intelligent
AI 3.0
Triple-lens
Camera
Future-proof
Computing
Seamless ProAV
Integration
Video
Fence
Intelli
Focus
- Ultra HD 화질과 AI 기반 지능형 기능
- Microsoft Teams 네이티브 통합을 통한 원활한 회의 경험
- 뛰어난 데이터 처리 성능
- 협업을 강화하는 실시간 콘텐츠 공유
- 간편한 구축과 쉬운 사용
- 원격 디바이스 관리 지원
Specifications
| Package Content | • MCore 4 • MTouch Plus • RoomSensor • MeetingBar A50, all-in-one video collaboration |
| Preload | • Windows 11 IoT enterprise X64 • Windows 11 IoT enterprise license • Microsoft Teams rooms app • Yealink RoomConnect |
| MCore 4, Gen-4 Mini-PC | • Processor: Intel Ultra5 125H • Memory: 16GB(2*8GB) DDR5 • Storage: 256GB SSD BIOS feature: • 3x HDMI video output - CEC - EDID • TPM2.0 • Kernel DMA Interfaces: • 1 x HDMI-Out 2.1 port • 2 x HDMI-Out 2.0 port • 1 x HDMI-In port • 4 x USB3.0 type-A port • 1 x MTouch port (RJ-45) • 1 x LAN port for AV network • 1 x power supply port • 1 x 3.5mm headphone port • 1 x reset port • 1 x security slot • WiFi: IEEE 802.11 a/b/g/n/ac/ax • Bluetooth: BT 5.2 |
| MTouch Plus | Physical features: • 11.6-inch narrow bezel IPS display • Angle between screen and desktop (30° ~ 70°) • Adjustable angle of support frame (50° ~ 180°) Function features： • 1920 x 1080 video resolution • Support wired and wireless (with WPP30) content sharing • Support an external PD power supply to power the sharing device • Support HDMI/USB-C video input • Support desktop placement, desktop fixed, and wall-mounted deployment |
| RoomSensor | • Detection angle: 120° • Adjustable detection angle: ±20° • Operating temperature: 0-40℃ • Operating humidity: 10-95% |
| MeetingBar A50 | Camera: • Number of preset positions: 9 • Electronic gimbal • 1 x Wide HFOV 98°, VFOV 81° • 2 x Tele HFOV 41.6° VFOV 31.8° • 8 x digital zoom Speaker: • Built-in 4 x 5W speakers - Rated Power: 4 x 5W - Maximum Power: 4 x 10W • Maximum sound pressure level: 97 dBSPL @ 10 W @ 1 m • Frequency response: 80-20kHz • Sensitivity: 104±3dB 1W/0.1m • Sampling rate: 48kHz • Sound emission angle: 0-180° • Total Harmonic Distortion (THD): <3% @1kHz (rated) • Rated impedance: 4 ohms Microphone: • Built-in 16 MEMS microphone array, 10-meter pickup distance • Signal-to-noise ratio: 72dB@1kHz • Maximum sound pressure level: 130dBSPL (whole device), 100dBSPL (individual microphone) • Dynamic range: 22-108dBSPL • Sensitivity: -38dBV/Pa • Frequency response: 100-20kHz • Sampling rate: 48kHz • Bit depth: 32-bit • Audio processing: Full duplex, AEC (Acoustic Echo Cancellation), AGC (Automatic Gain Control) • Noise suppression: AI-enhanced noise suppression • Expansion mics: Supports 3 expansion microphones Interfaces: • 1 x USB3.0 Type-A port • 1 x USB3.0 Type-B port • 1 x USB2.0 Type-C port • 1 x Ethernet port • 2 x Yealink VCH port (RJ-45) • 1 x 3.5mm line-in & line-out port • 1 x power port • 1 x security lock slot • 1 x reset slot • 2 x HDMI-out Dimensions and environmental factors: • MeetingBar A50: 910 × 88 × 102 mm • Operating humidity: 10 - 95% • Operating temperature: 0 - 40°C |
