MCore Kit

Basic Component of Microsoft Teams Room System

MCore Kit 구성

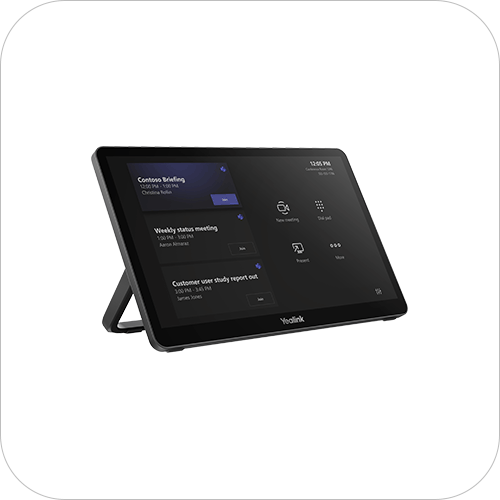

MTouch plus

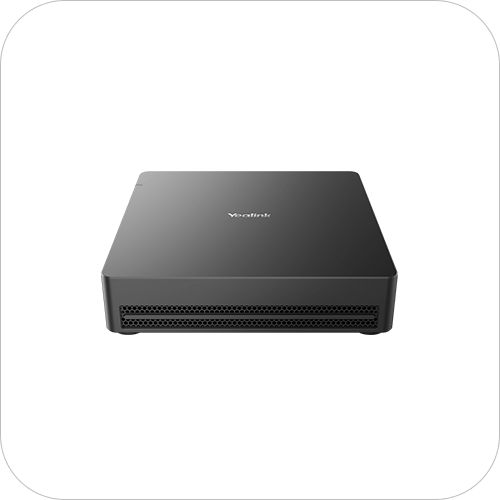

MCore 4

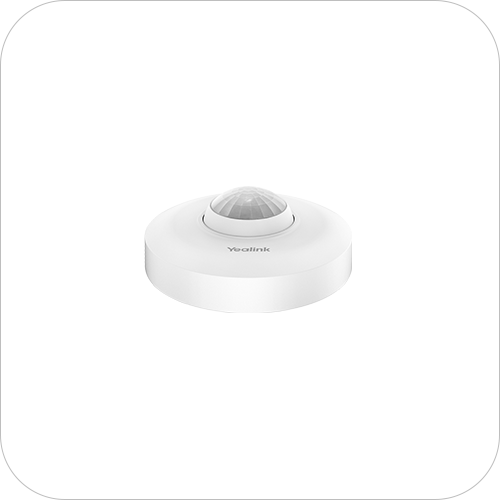

RoomSensor

Key Features

  • Microsoft Teams 네이티브 통합으로 구현하는 원활한 회의 환경
  • 강력한 데이터 처리 성능
  • 협업 효율을 높이는 실시간 콘텐츠 공유
  • 다양한 오디오 및 연결 옵션 지원
  • 간편한 설치와 직관적인 사용성
  • 원격 디바이스 관리 지원

Specifications

Package content• MCore 4, Gen-4 Mini-PC
• MTouch Plus, Gen-3 touch panel
• RoomSensor
Preload• Windows 11 IoT enterprise X64
• Windows 11 IoT enterprise license
• Microsoft Teams rooms app
• Yealink RoomConnect
MCore 4, Gen-4 Mini-PC• Processor: Intel Ultra5 125H
• Memory: 16GB(2*8GB) DDR5
• Storage: 256GB SSD

BIOS feature:
• 3x HDMI video output
- CEC
- EDID
• TPM2.0
• Kernel DMA

Interfaces:
• 1 x HDMI-Out 2.1 port
• 2 x HDMI-Out 2.0 port
• 1 x HDMI-In port
• 4 x USB3.0 type-A port
• 1 x MTouch port (RJ-45)
• 1 x LAN port for AV network
• 1 x power supply port
• 1 x 3.5mm headphone port
• 1 x reset port
• 1 x security slot
• WiFi: IEEE 802.11 a/b/g/n/ac/ax
• Bluetooth: BT 5.2
MTouch PlusPhysical features:
• 11.6-inch narrow bezel IPS display
• Angle between screen and desktop (30° ~ 70°)
• Adjustable angle of support frame (50° ~ 180°)

Function features：
• 1920 x 1080 video resolution
• Support wired and wireless (with WPP30) content sharing
• Support an external PD power supply to power the sharing device
• Support HDMI/USB-C video input
• Support desktop placement, desktop fixed, and wall-mounted deployment
RoomSensor• Detection angle: 120°
• Adjustable detection angle: ±20°
• Operating temperature: 0-40℃
• Operating humidity: 10-95%
