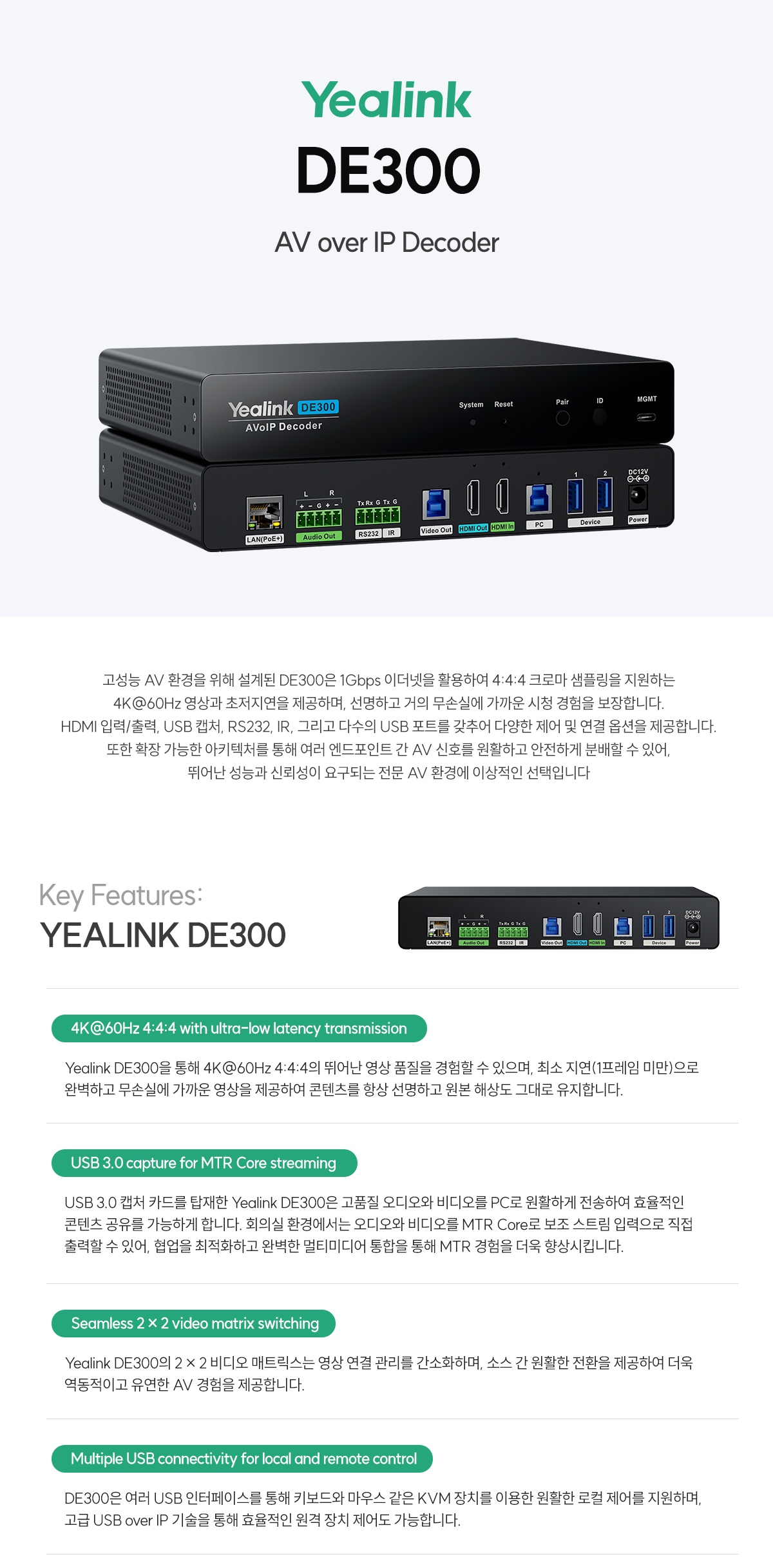

Key Features
- 4K@60Hz 4:4:4의 뛰어난 영상 품질 경험
- 최소 지연(1프레임 미만)으로 무손실에 가까운 영상 제공
- USB 3.0 캡처 카드 탑재
- 고품질 오디오와 비디오의 원활한 전송
- 2 × 2 비디오 매트릭스
- 고급 USB over IP 기술
- RS232, IR, CEC를 통한 직관적인 디스플레이 제어
- 기가비트 네트워크 환경 설계
- HDCP 2.3 표준 완벽 지원
- Plug and Play
Specifications
| Decoding | • Video Resolution : Up to 4K@60Hz • Chroma sampling : 4:4:4 • Color Depth : 8-bit • Bit Rate : Below 1Gbps • Latency : Less than one frame • Copy Protection : HDCP2.3 • Advanced : HDR |
| Audio | • Input : - 1 × digital input, de-embedded from HDM input - 1 × IP input • Output : - 1 × HDMI output - 1 × video capture output - 1 × stereo analog audio output (balanced or unbalanced) • Audio Format : LPCM multi-channel |
| Video | • Input : - 1 × HDMI input - 1 × IP input • Output : - 1 × HDMI output - 1 × video capture output |
| Power Supply | • Power Consumption : - Average: 8 W - Peak: 8.5 W - Standby: 5.4 W • Power Adapter : DC 12V/2A • PoE : PoE+, 802.3at, class 4 • USB-A Output : 5V/0.5A |
| Installation Method | • Rack installation • Under-desk installation • Flat installation |
| Communication | • Network : - Protocol: Multicast, DHCP, IPv4, HTTPS - Transmission Distance: 100 meters / 330 feet over CAT5e and above • USB : USB 2.0 Type-C for computer management • RS232 : Bi-directional control, supports up to 115200 baud • IR : - Out carrier frequency: 34kHz to 42kHz |
| Environmental Factors | • Operating humidity: 10 - 95 % • Operating temperature: -10 - +45°C • Storage temperature: -30 - 70°C |
| Hardware Interface | • 1 × HDMI in • 1 × HDMI out (supports CEC) • 1 × USB 3.0 Type-B capture output • 2 × USB 3.0 Type-A • 1 × Audio out • 1 × RS232 (each pin separately for TX, RX, and ground) • 1 × IR Out (each pin separately for TX and ground) • 1 × MGMT port • 1 × PoE port • 1 × power supply (12V/2A) |
| Package | • 1 × DE300 • 1 × 1.8 m HDMI Cable • 2 × 2.5 m USB 3.0 Type-B to Type-A Cables • 1 × 1.0 m USB 3.0 Type-C to Type-A Cable (for management port) • 2 × 5-Pin Male Phoenix Connectors (for analog audio and control) • 1 × Infrared Emitter (for IR output control) • 1 × Power Adapter (12V / 2A) • 1 × Mounting Kit (for wall, flat surface, or rack installation). Includes mounting ears, rack connection piece, and screws. • 3 × Cable Locker • 1 × Quick start guide |
