Key Features
- 4K@60Hz 4:4:4의 뛰어난 영상 품질 경험
- 최소 지연(1프레임 미만)으로 무손실에 가까운 영상 제공
- Dante AV-A 프로토콜 지원
- 뛰어난 유연성과 확장성 제공
- HDMI 및 USB Type-C를 포함한 다양한 오디오 및 비디오 입력 포트
- USB Type-C 케이블
- 4K 콘텐츠 공유, 유선 BYOD/BYOM 연결 지원, 최대 60W PD 제공

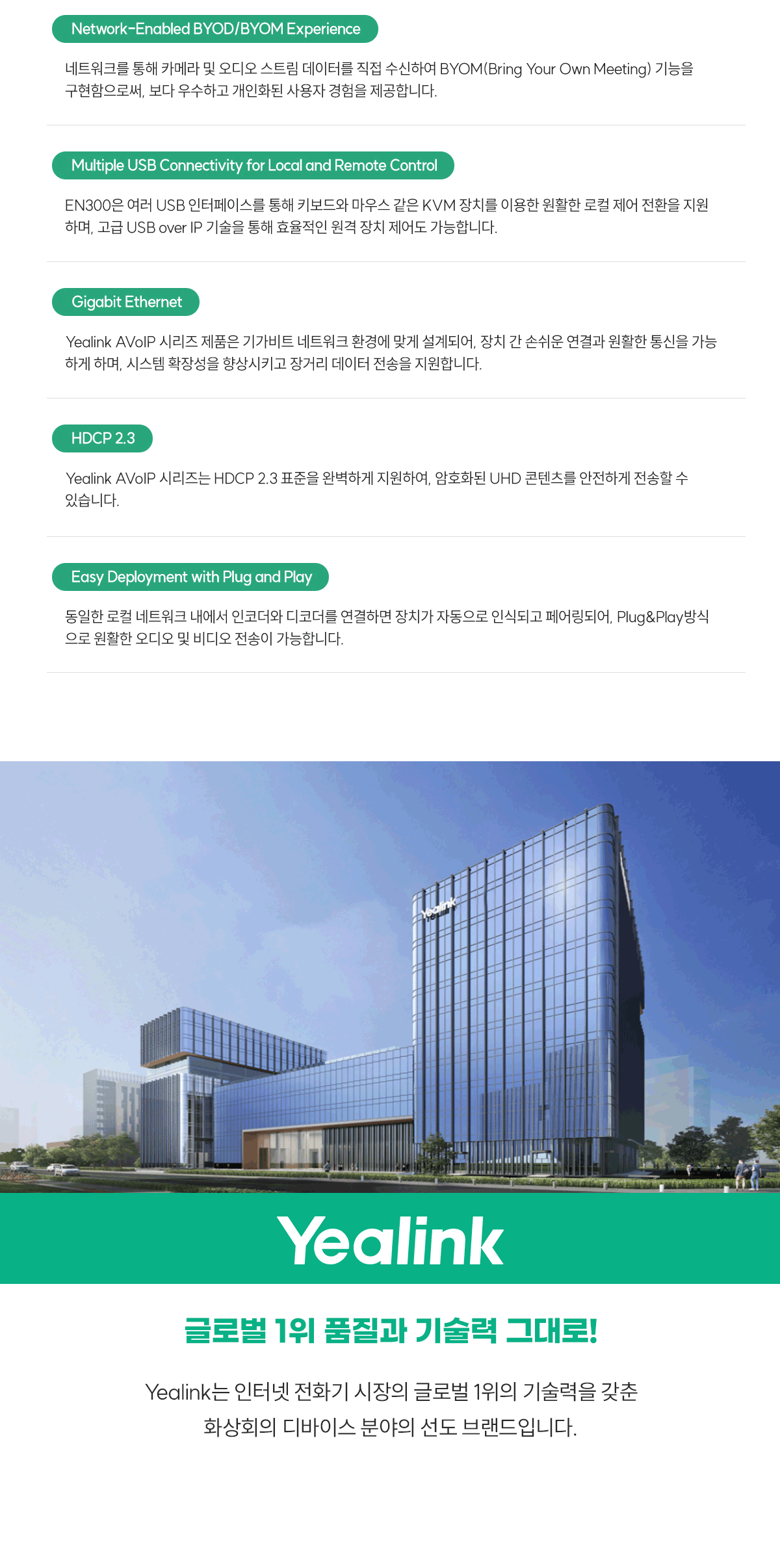

- BYOM(Bring Your Own Meeting) 기능 구현
- 원격 장치 제어
- 기가비트 네트워크 환경 설계
- HDCP 2.3 표준 완벽 지원
- Plug and Play

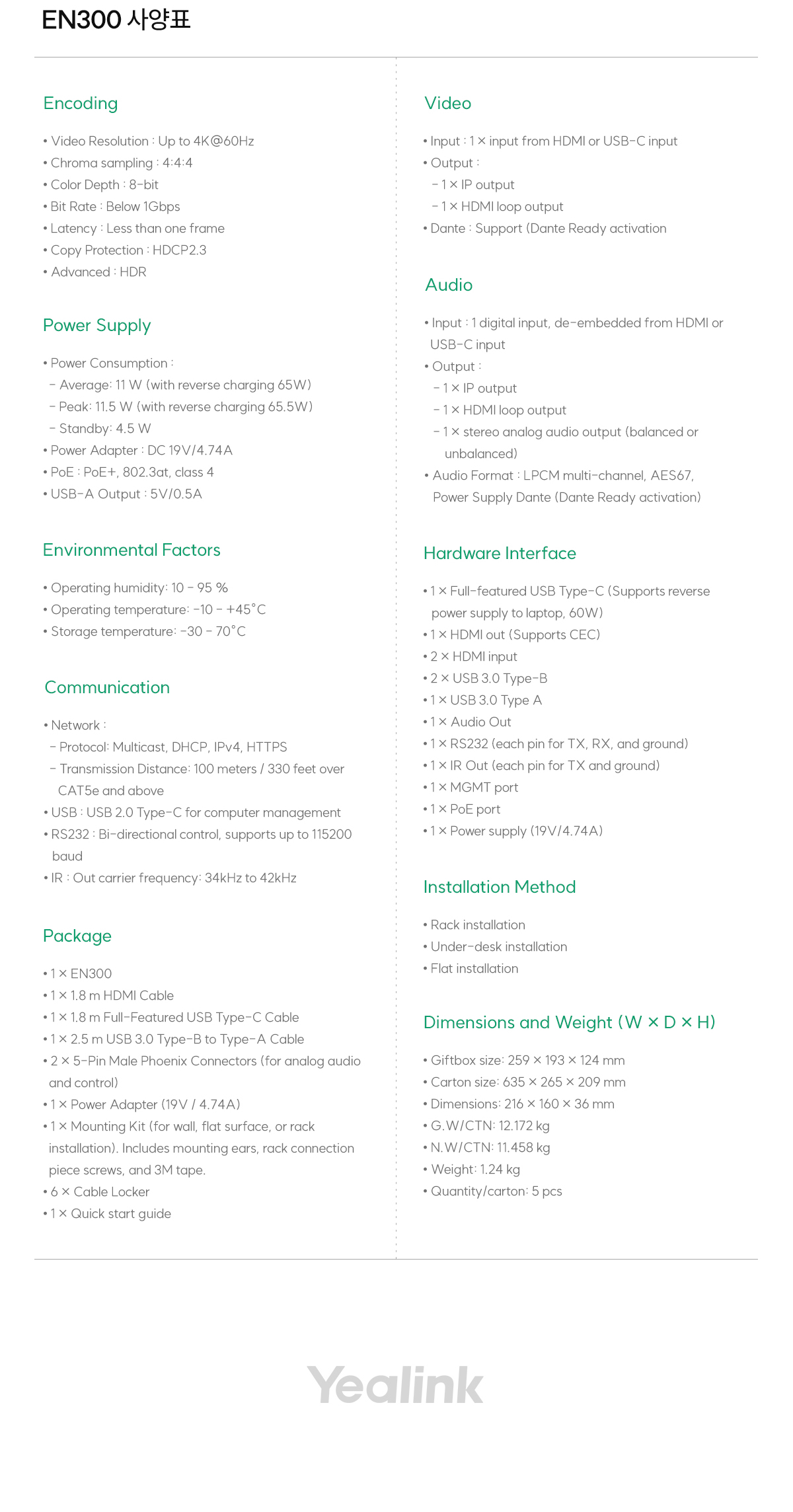

Specifications
| Encoding | • Video Resolution : Up to 4K@60Hz • Chroma sampling : 4:4:4 • Color Depth : 8-bit • Bit Rate : Below 1Gbps • Latency : Less than one frame • Copy Protection : HDCP2.3 • Advanced : HDR |
| Audio | • Input : 1 digital input, de-embedded from HDMI or USB-C input • Output : - 1 × IP output - 1 × HDMI loop output - 1 × stereo analog audio output (balanced or unbalanced) • Audio Format : LPCM multi-channel, AES67, Dante (Dante Ready activation) |
| Video | • Input : 1 × input from HDMI or USB-C input • Output : - 1 × IP output - 1 × HDMI loop output • Dante : Support (Dante Ready activation) |
| Power Supply | • Power Consumption : - Average: 11 W (with reverse charging 65W) - Peak: 11.5 W (with reverse charging 65.5W) - Standby: 4.5 W • Power Adapter : DC 19V/4.74A • PoE : PoE+, 802.3at, class 4 • USB-A Output : 5V/0.5A |
| Installation Method | • Rack installation • Under-desk installation • Flat installation |
| Communication | • Network : - Protocol: Multicast, DHCP, IPv4, HTTPS - Transmission Distance: 100 meters / 330 feet over CAT5e and above • USB : USB 2.0 Type-C for computer management • RS232 : Bi-directional control, supports up to 115200 baud • IR : - Out carrier frequency: 34kHz to 42kHz |
| Environmental Factors | • Operating humidity: 10 - 95 % • Operating temperature: -10 - +45°C • Storage temperature: -30 - 70°C |
| Hardware Interface | • 1 × Full-featured USB Type-C (Supports reverse power supply to laptop, 60W) • 1 × HDMI out (Supports CEC) • 2 × HDMI input • 2 × USB 3.0 Type-B • 1 × USB 3.0 Type A • 1 × Audio Out • 1 × RS232 (each pin for TX, RX, and ground) • 1 × IR Out (each pin for TX and ground) • 1 × MGMT port • 1 × PoE port • 1 × Power supply (19V/4.74A) |
| Package | • 1× EN300 • 1 × 1.8 m HDMI Cable • 1 × 1.8 m Full-Featured USB Type-C Cable • 1 × 2.5 m USB 3.0 Type-B to Type-A Cable • 2 × 5-Pin Male Phoenix Connectors (for analog audio and control) • 1 × Power Adapter (19V / 4.74A) • 1 × Mounting Kit (for wall, flat surface, or rack installation). Includes mounting ears, rack connection piece screws, and 3M tape. • 6 × Cable Locker • 1 × Quick start guide |
