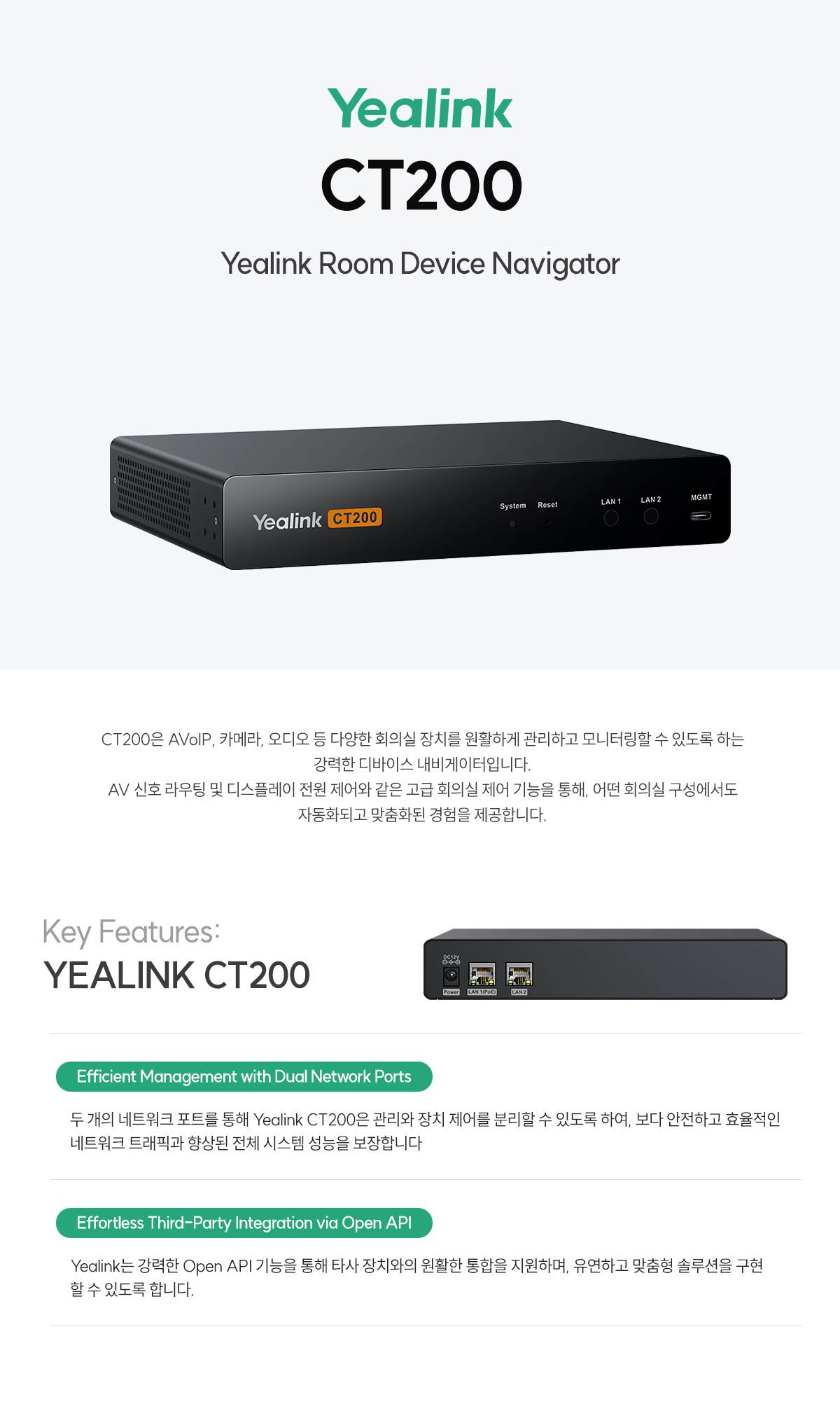

Key Features
- 안전하고 효율적인 네트워크 트래픽
- 향상된 시스템 성능 보장
- 두 개의 네트워크 포트를 통해 관리와 장치 제어 분리
- 강력한 Open API 기능
- 맞춤형 솔루션 구현

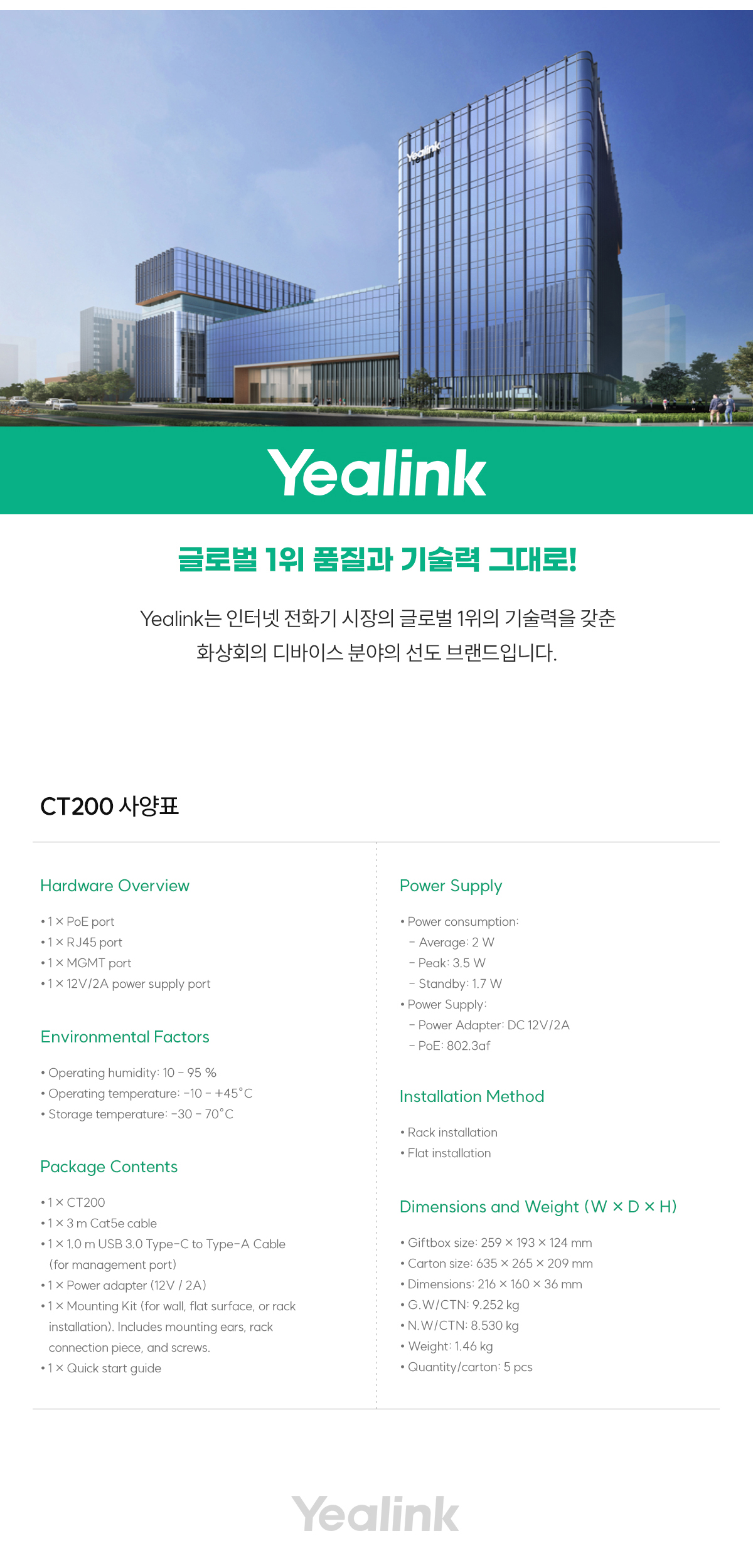

Specifications
| Hardware Overview | • 1 × PoE port • 1 × RJ45 port • 1 × MGMT port • 1 × 12V/2A power supply port |
| Power Supply | • Power consumption: - Average: 2 W - Peak: 3.5 W - Standby: 1.7 W • Power Supply: - Power Adapter: DC 12V/2A - PoE: 802.3af |
| Environmental Factors | • Operating humidity: 10 ~ 95 % • Operating temperature: -10 ~ +45 °C • Storage temperature: -30 ~ 70 °C |
| Installation Method | • Rack installation • Flat installation |
| Package | • 1 × CT200 • 1 × 3 m Cat5e cable • 1 × 1.0 m USB 3.0 Type-C to Type-A Cable (for management port) • 1 × Power adapter (12V / 2A) • 1 × Mounting Kit (for wall, flat surface, or rack installation). Includes mounting ears, rack connection piece, and screws. • 1 × Quick start guide |
| Dimensions and Weight (W × D × H) | • Giftbox size: 259 × 193 × 124 mm • Carton size: 635 × 265 × 209 mm • Dimensions: 216 × 160 × 36 mm • G.W/CTN: 9.252 kg • N.W/CTN: 8.530 kg • Weight: 1.46 kg • Quantity/carton: 5 pcs |
