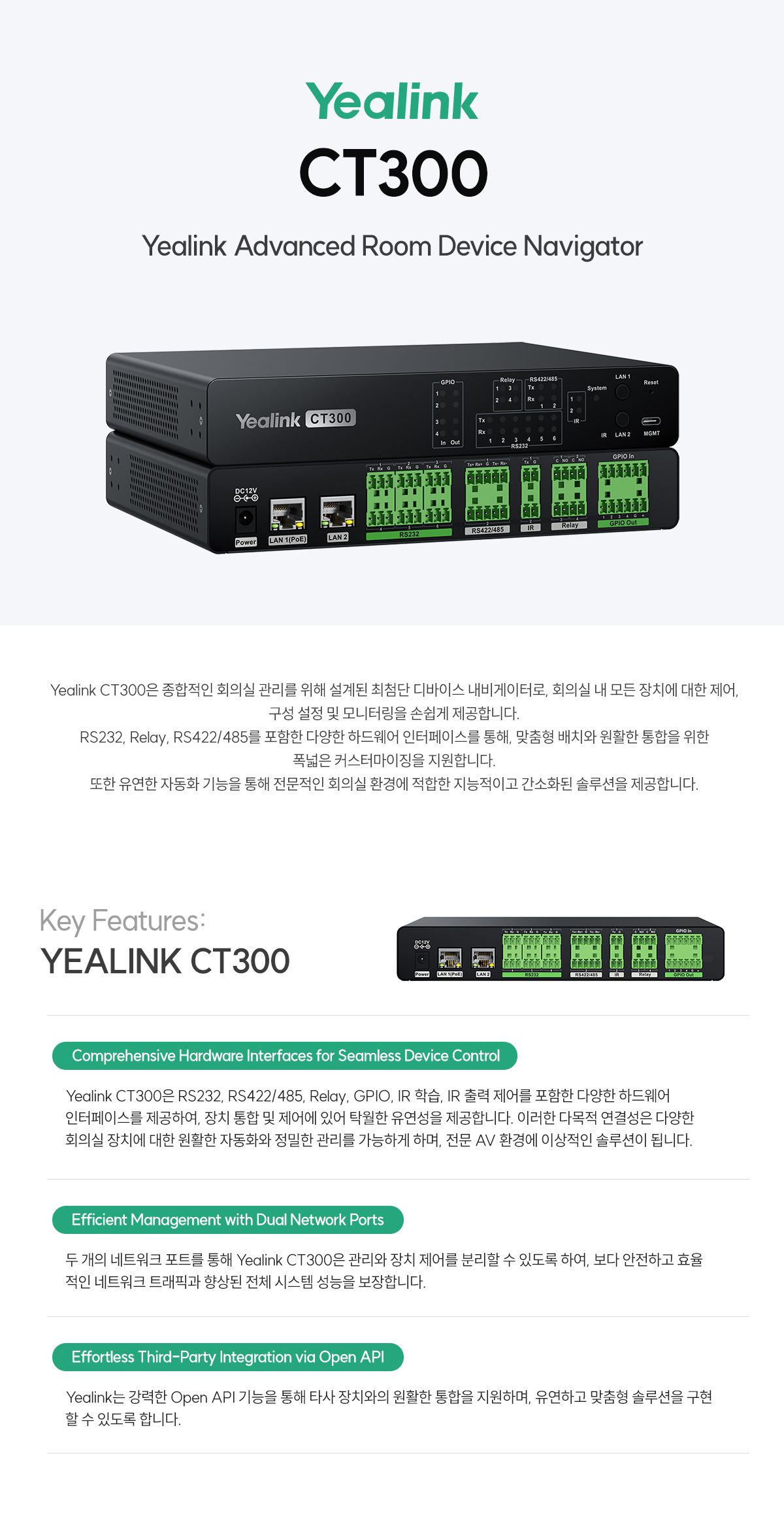

Key Features
- 다양한 하드웨어 인터페이스 제공 : RS232, RS422/485, Relay, GPIO, IR 학습, IR 출력 제어
- 두 개의 네트워크 포트 : 관리와 장치 제어 분리
- 강력한 Open API 기능

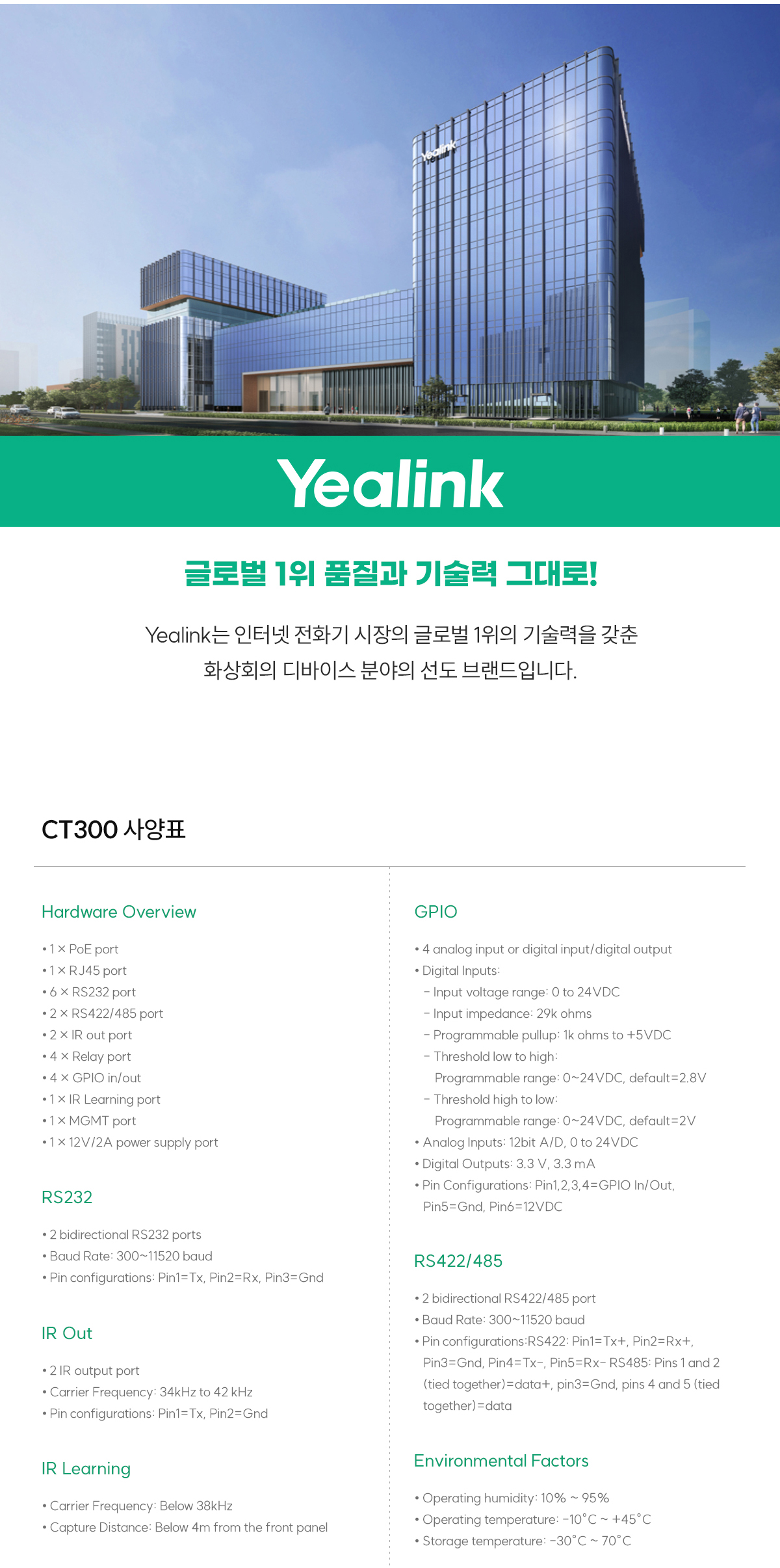

Specifications
| Hardware Overview | • 1 × PoE port • 1 × RJ45 port • 6 × RS232 port • 2 × RS422/485 port • 2 × IR out port • 4 × Relay port • 4 × GPIO in/out • 1 × IR Learning port • 1 × MGMT port • 1× 12V/2A power supply port |
| RS232 | • 2 bidirectional RS232 ports • Baud Rate: 300~11520 baud • Pin configurations: Pin1=Tx, Pin2=Rx, Pin3=Gnd |
| RS422/485 | • 2 bidirectional RS422/485 port • Baud Rate: 300~11520 baud • Pin configurations:RS422: Pin1=Tx+, Pin2=Rx+, Pin3=Gnd, Pin4=Tx-, Pin5=Rx- RS485: Pins 1 and 2 (tied together)=data+, pin3=Gnd, pins 4 and 5 (tied together)=data |
| IR Out | • 2 IR output port • Carrier Frequency: 34kHz to 42 kHz • Pin configurations: Pin1=Tx, Pin2=Gnd |
| GPIO | • 4 analog input or digital input/digital output • Digital Inputs: - Input voltage range: 0 to 24VDC - Input impedance: 29k ohms - Programmable pullup: 1k ohms to +5VDC - Threshold low to high: Programmable range: 0~24VDC, default=2.8V - Threshold high to low: Programmable range: 0~24VDC, default=2V • Analog Inputs: 12bit A/D, 0 to 24VDC • Digital Outputs: 3.3 V, 3.3 mA • Pin Configurations: Pin1,2,3,4=GPIO In/Out, Pin5=Gnd, Pin6=12VDC |
| IR Learning | • Carrier Frequency: Below 38kHz • Capture Distance: Below 4m from the front panel |
| Power Consumption | • Average: 2.5 W • Peak: 3.3 W • Standby: 1.7 W |
| Environmental Factors | • Operating humidity: 10% ~ 95% • Operating temperature: -10°C ~ +45°C • Storage temperature: -30°C ~ 70°C |
| Package Contents | • 1 × CT300 • 1 × 3 m Cat5 cable • 1 × 1.0 m USB 3.0 Type-C to Type-A Cable (for management port) • 1 × Power adapter (12V / 2A) • 2 × Infrared Emitter (for IR output control) • Male phoenix connectors for control connection • 1 × Mounting Kit (for wall, flat surface, or rack installation). Includes mounting ears, rack connection piece, and screws • 1 × Quick start guide |
| Installation Method | • Rack installation • Flat installation |
| Relay | • 4 normally open relays • Rated: 30VDC, 2A • Pin configurations: Pin1=Common, Pin2=No |
| Dimensions and Weight (W × D × H) | • Giftbox size: 259 × 193 × 124 mm • Carton size: 635 × 265 × 209 mm • Dimensions: 216 × 160 × 36.7 mm • G.W/CTN: 9.133 kg • N.W/CTN: 8.485 kg • Weight: 1.07 kg • Quantity/carton: 5 pcs |
