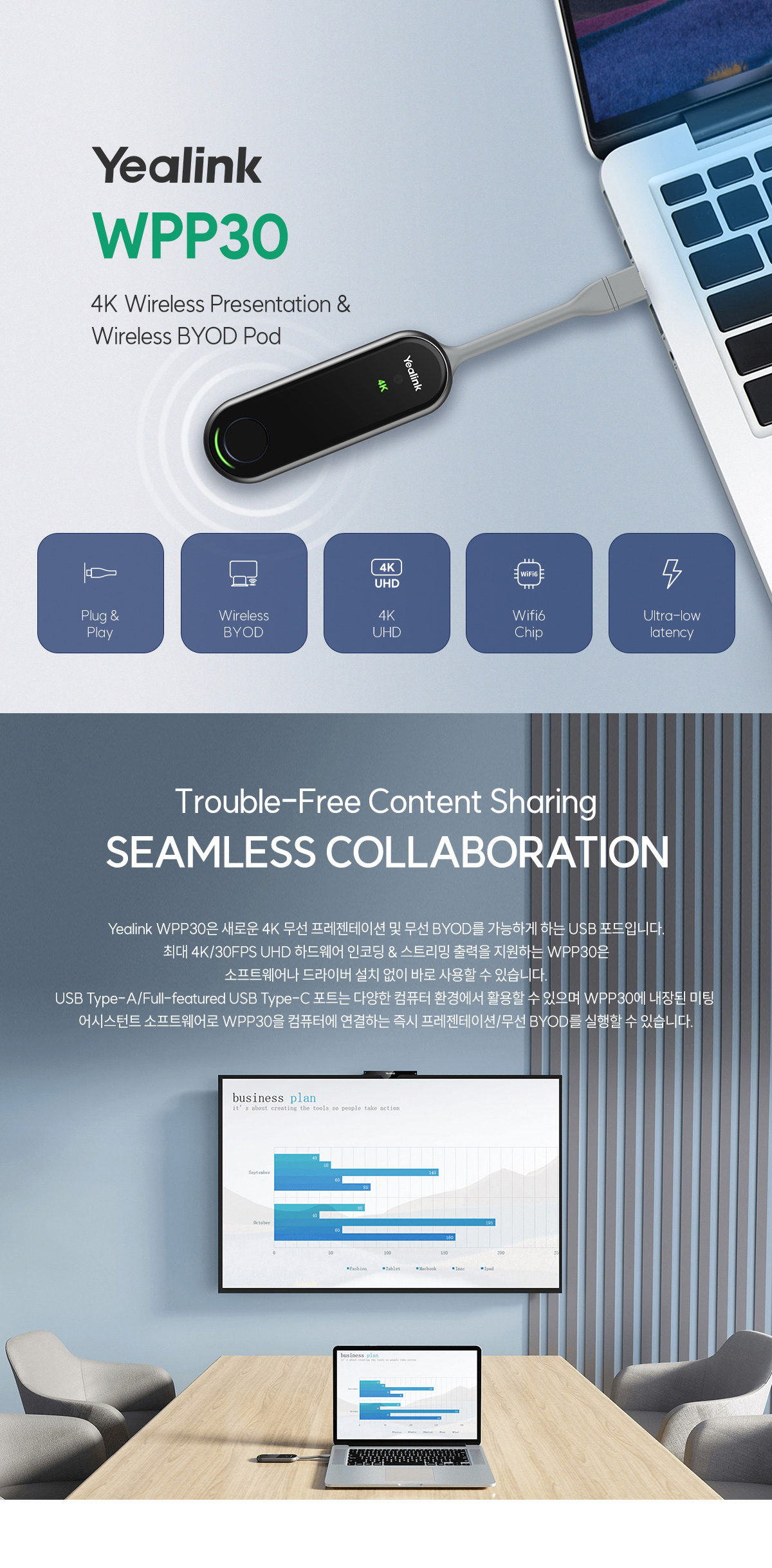

Key Features
Plug &
Play
Hardware
Encoding
4K
UHD
WIFI6
Chip
Ultra-low
latency
Bluetooth
5.0
- 내장 Wi-Fi Network
- 4K/30fps Full HD 컨텐츠 공유
- 무선 BYOD 화상회의 지원
- 플러그 앤 플레이 소프트웨어/하드웨어 인코딩
- 듀얼 밴드 2.4GHz/5GHz 무선 네트워크
- 풀 기능 USB Type-C 및 USB Type-A 포트
- AES & WPA 데이터 암호화
- 다양한 포트를 가진 컴퓨터와 휴대폰에 적용가능
- 최대 4개의 컨텐츠를 동시에 스트리밍
- 주석, 화이트보드 사용 및 역방향 컨트롤 가능
Specifications
| Acoustic Parameters | • Frequency response range: 120 Hz - 20 kHz • Sensitivity: 0 dBV/Pa 94dBSPL@1kHz • Signal-to-noise ratio: 86dB @1kHz, 94dBSPL A-Weighted • Maximum sound pressure level: 122dB at < 1% THD • Dynamic range: 86dB @<1% THD • Support Protocol: Dante, AES67 |
| Dante Audio | • Output channels: 8+2 Dante output channels • Input channels: 2 Dante input channels - 1 Dante input for AEC reference - 1 Dante input for AFC reference • Sampling rate: 48K • Bit depth: 24-bit |
| Encryption Solutions | • Dante Media Encryption with AES-256 encryption (Works with Dante Brooklyn 3, Dante IP Core, and Dante Pro S1) • Yealink Audio Encryption with AES-256 encryption (Works with Yealink AVBridge) |
| Product Design | • Microphone array: 127 MEMS array • Acoustic technology: Beamforming • Product dimensions: L592 × W592 × T56 mm • Product weight: 5.15 kg (net weight, excluding accessories) • Product color: Apple White • Product Material: SGCC/SPCC/AL5052 • Certification: Plenum Rated UL 2043 (suitable for air handling spaces) • Physical interface: - 1 × RJ-45 interface - 1 × 3-pin Phoenix connectors for analog output |
| Operating Information | • Power requirements: IEEE PoE+ (IEEE 802.3at class 4) • Power consumption: - Rated power: 19.3 W - Typical power: 17 W • Operating temperature: 0-40 ℃ • Operating humidity: 0-93% RH |
| Logistics Information | • Giftbox dimensions (L×W×H): 722 × 687 × 110 mm • Weight: - N.W/CTN: 7.750 kg - G.W/CTN: 9.790 kg • Storage temperature: -30~70 ℃ |
