Key Features
16-mic
Arrays
8 pickup
Zones
30㎡ Premium quality
Full-duplex Audio
60㎡ Effectively
Pick-up Range
AI Dynamic Noise
Cancellation
AI
AEC
- 16개의 전방향 마이크로폰 유닛 탑재

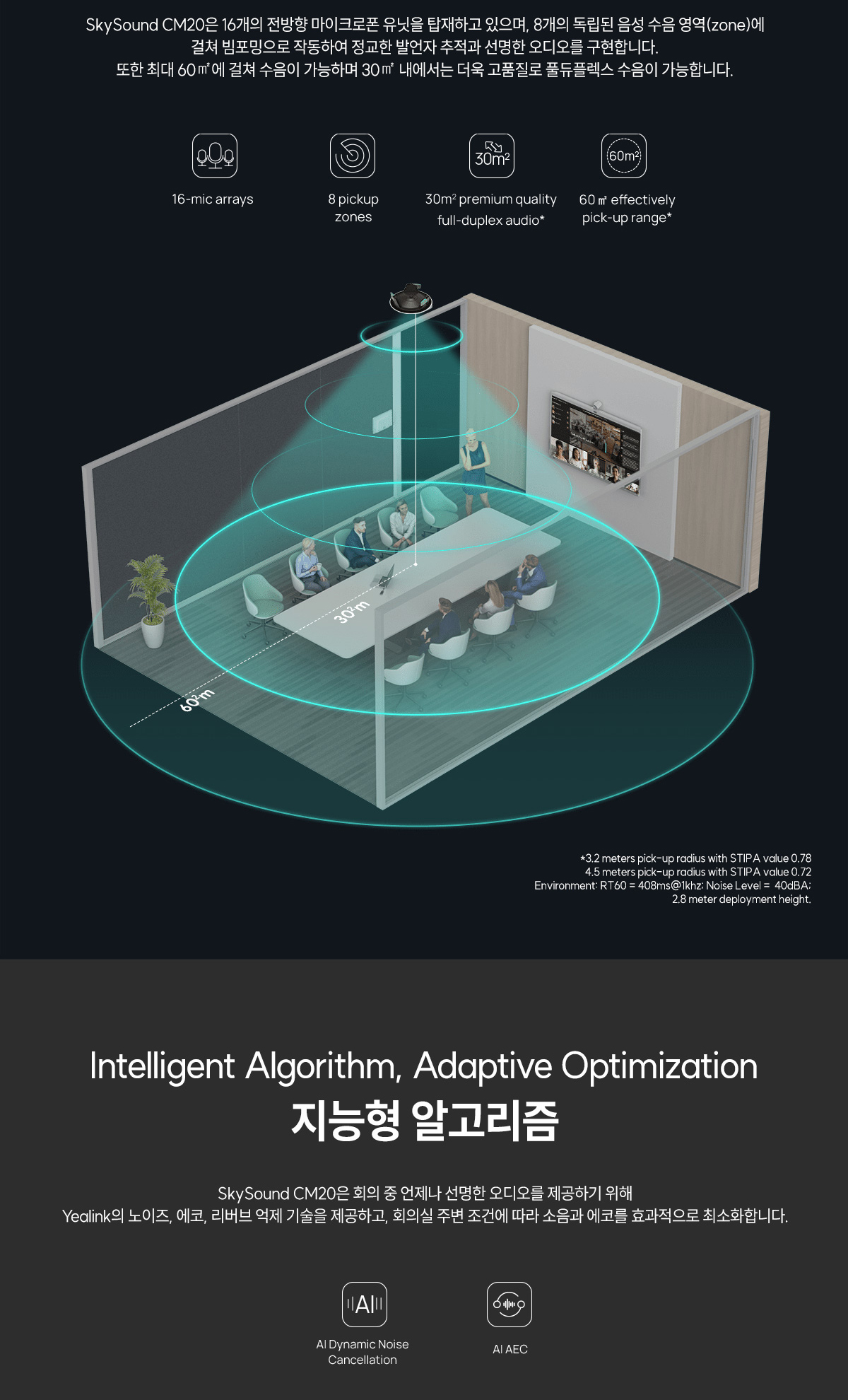

- Beamforming : 8개의 독립된 음성 픽업 존
- 최대 60㎡ 픽업 가능 / 최대 30㎡ 풀듀플렉스
- 정밀한 스피커 추적, 카메라와의 통합
- 노이즈캔슬링, 에코 캔슬링, 리버브 억제 기능
- DSP 탑재, Plug&Play
- AES67, PoE 지원
- 다양한 설치 옵션
- 탈부착식 마그네틱 흡착 메쉬 커버
Specifications
| Package Content | • SkySound CM20 Microphone • White Mesh Cover (Black Optional) • Quick Start Guide • Assembly Fixing Bracket • Dust Cover • Length-Adjustable Pole (Optional) • Bracing Bridge × 1 pair • Suspend Pole Adapter (Optional) • Expansion Bolt × 6 (φ6 × 30mm, white, Polyamide) • Self-tapping Screw × 6 (T4 × 30mm) • Machine Screw × 5 (3 × 6PMOZN3+) • Bracing Bredge Screw × 20 (M3 × 6PWMHOZN3) |
| Audio Specifications | • Frequency Response: 120Hz-16kHz • Maximum SPL: 122dBSPL • Signal Noise Ratio: 86dB @<1% THD • Sensitivity: 0 dBV/Pa 94dBSPL@1kHZ • Microphone: 16 omni-direction microphone • AEC Channel: 1 channel internal |
| Product Specifications | • Size: (with cover mesh) Φ223 × H83mm (without cover mesh) Φ215 × H81mm • Weight: 615g • Product Color: Pearl Light Gray • Product Materials: ABS+PC&iron mesh • Plenum Rated UL 2043 (suitable for air handling spaces) |
| Physical Features | • Operating Temperature: 0-50℃ • Storage Temperature: 0-70℃ • Operating Humidity: 5%~90% • Continuous Power: 5.7W • Peak Power: 9W • Interface: RJ-45 • Power Supply: PoE (IEEE 802.3af, class 3) |
| Logistic Information | • Box Size: 398mm × 310mm × 135mm • N.W/CTN: 2.462kg • G.W/CTN: 3.078kg |
