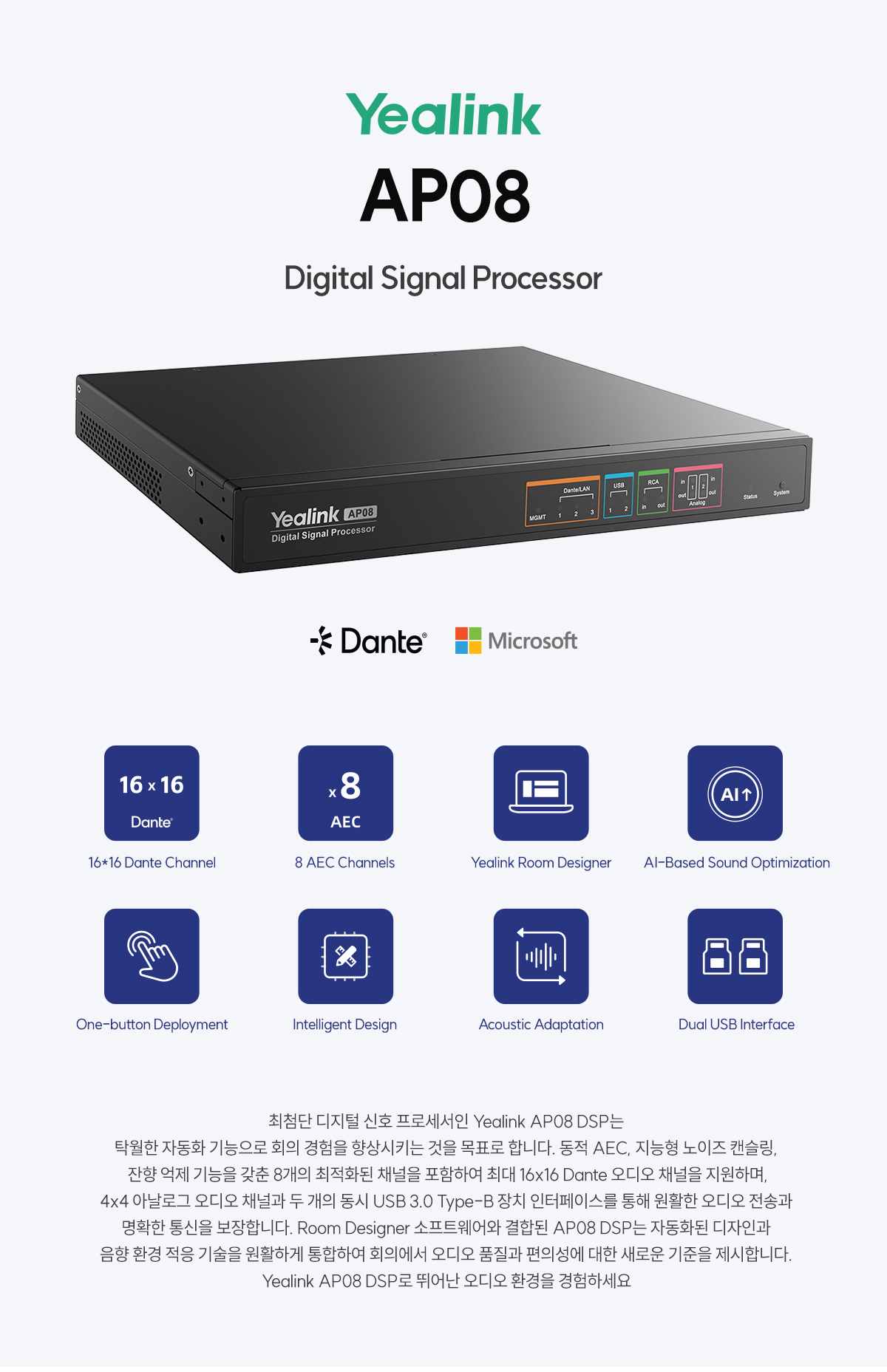

Key Features
16*16 Dante
Channel
8 AEC
Channels
Yealink
Room Designer
AI-Based Sound
Optimization
One-button
Deployment
Intelligent
Design
Acoustic
Adaptation
Dual USB
Interface
AI Feedback
Suppression
- 16×16 Dante 오디오 채널 지원
- 다이나믹 AEC 알고리즘을 갖춘 8개 채널
- 4×4 아날로그 채널과 2개의 USB-B 장치 인터페이스 포함
- 뛰어난 오디오 전송과 명확한 통신 보장
- Plug-and-Play 설치
- 오디오 링크 자동 설정, 실내 음향 커스터마이징

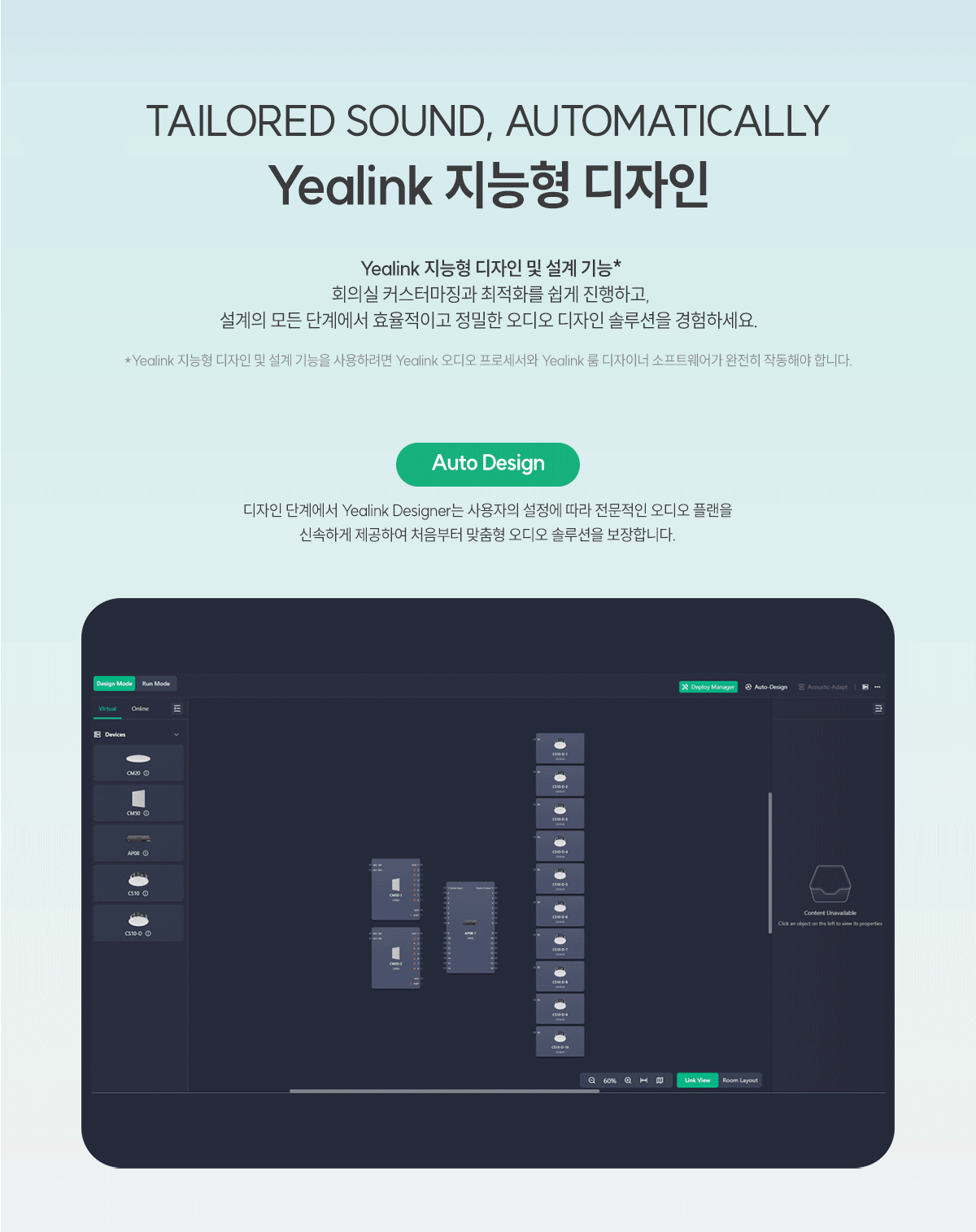

- Room Designer 소프트웨어 : 효율적인 오디오 솔루션 설계
- Teams Room 과의 호환

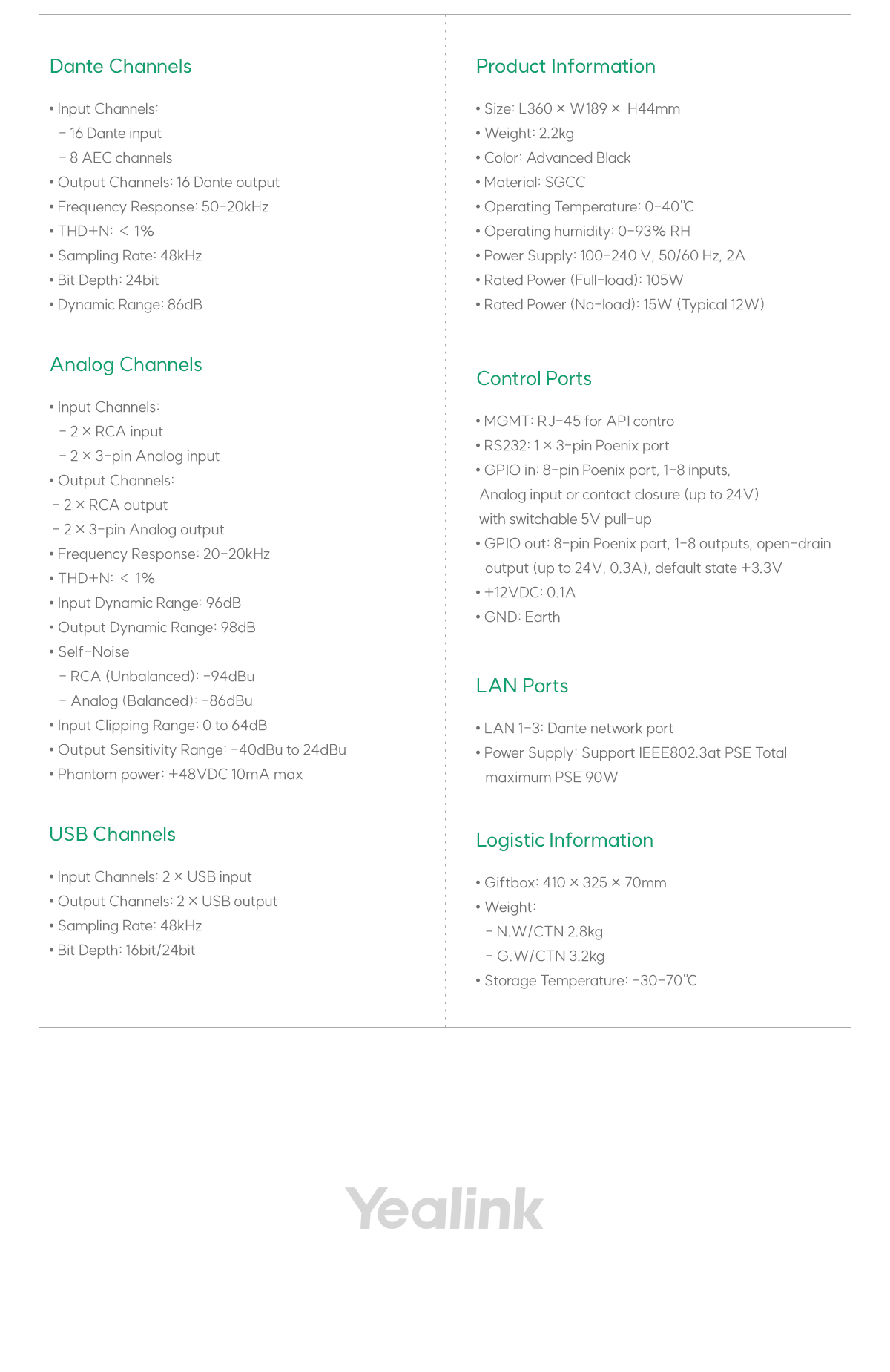

Specifications
| Dante Channels | • Input Channels: - 16 Dante input - 8 AEC channels • Output Channels: 16 Dante output • Frequency Response: 50-20㎑ • THD+N: ＜ 1% • Sampling Rate: 48㎑ • Bit Depth: 24bit • Dynamic Range: 86㏈ |
| Analog Channels | • Input Channels: - 2 x RCA input - 2 x 3-pin Analog input • Output Channels: - 2 x RCA output - 2 x 3-pin Analog output • Frequency Response: 20-20㎑ • THD+N: ＜ 1% • Input Dynamic Range: 96㏈ • Output Dynamic Range: 98㏈ • Self-Noise - RCA (Unbalanced): -94㏈u - Analog (Balanced): -86㏈u • Input Clipping Range: 0 to 64㏈ • Output Sensitivity Range: -40㏈u to 24㏈u • Phantom power: +48VDC 10 ㎃ max |
| Control Ports | • MGMT: RJ-45 for API contro • RS232: 1 x 3-pin Poenix port • GPIO in: 8-pin Poenix port, 1-8 inputs, Analog input or ontact closure (up to 24V) with switchable 5V pull-up • GPIO out: 8-pin Poenix port, 1-8 outputs, open-drain output (up to 24V, 0.3A), default state +3.3V • +12VDC: 0.1A • GND: Earth |
| USB Channels | • Input Channels: 2 x USB input • Output Channels: 2 x USB output • Sampling Rate: 48㎑ • Bit Depth: 16bit/24bit |
| Product Information | • Size: L360 x W189 x H44mm • Weight: 2.2kg • Color: Advanced Black • Material: SGCC • Operating Temperature: 0-40℃ • Operating humidity: 0-93% RH • Power Supply: 100-240 V, 50/60 Hz, 2A • Rated Power (Full-load): 105W • Rated Power (No-load): 15W (Typical 12W) |
| LAN Ports | • LAN 1-3: Dante network port • Power Supply: Support IEEE802.3at PSE Total maximum PSE 90W |
| Logistic Information | •Giftbox: 410 x 325 x 70mm • Weight: - N.W/CTN 2.8kg - G.W/CTN 3.2kg • Storage Temperature: -30-70℃ |
