Key Features
Dante
Microphone
Easy
Deployment
Specially
Design

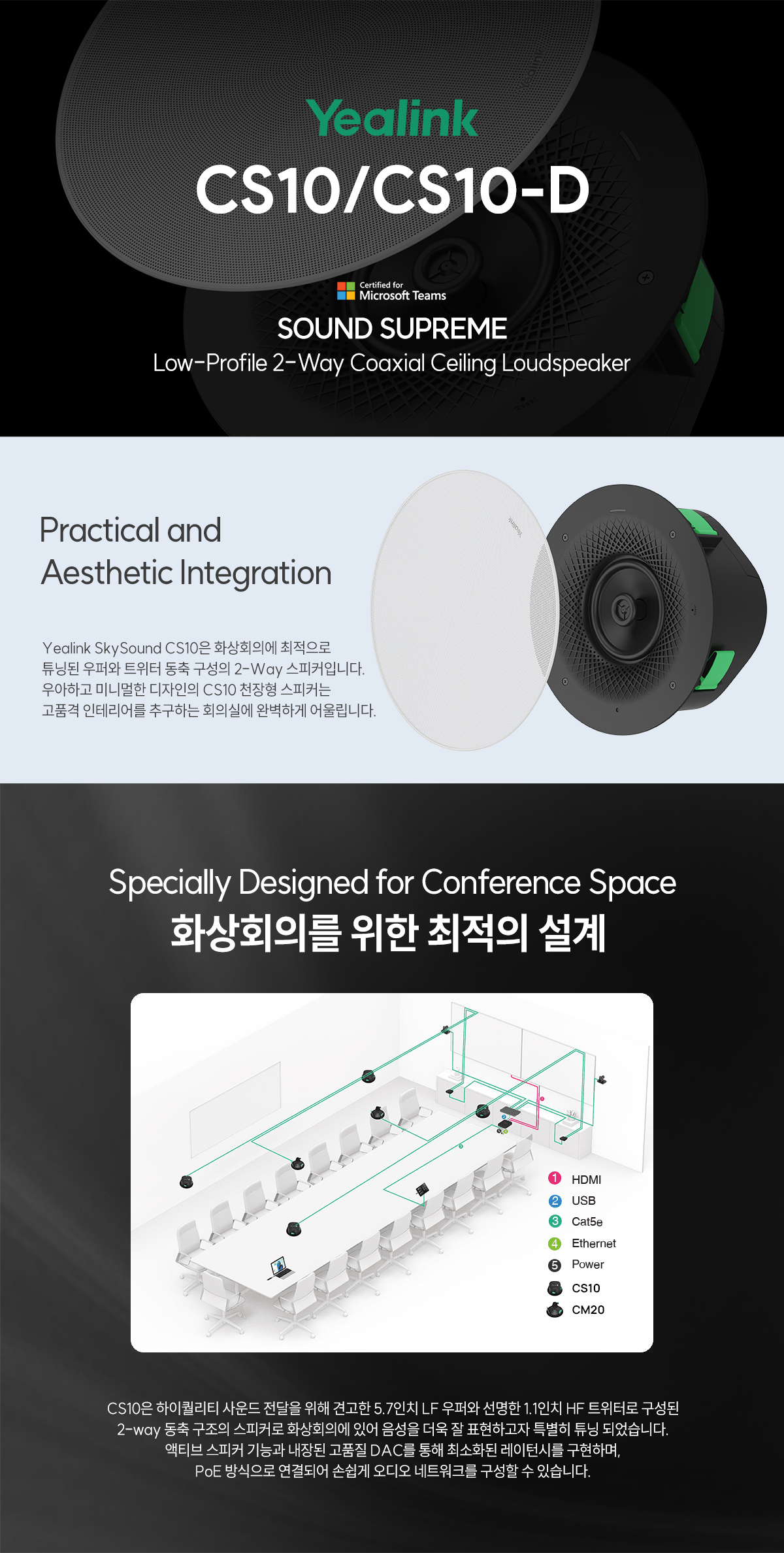

- 혁신적인 2-Way 동축 설계 구조 : 5.7인치 LF 우퍼, 1.1인치 HF 트위터
- 하이 퍼포먼스 음향 : 88dB@1W 1m 감도, 99dB@20W 1m 최대 SPL
- PoE 인터페이스의 액티브 스피커 : DAC 내장, PoE 지원
- Dante 표준을 지원하는 진보된 오디오 네트워킹 : 시스템 통합, 고급 오디오 네트워킹 구현

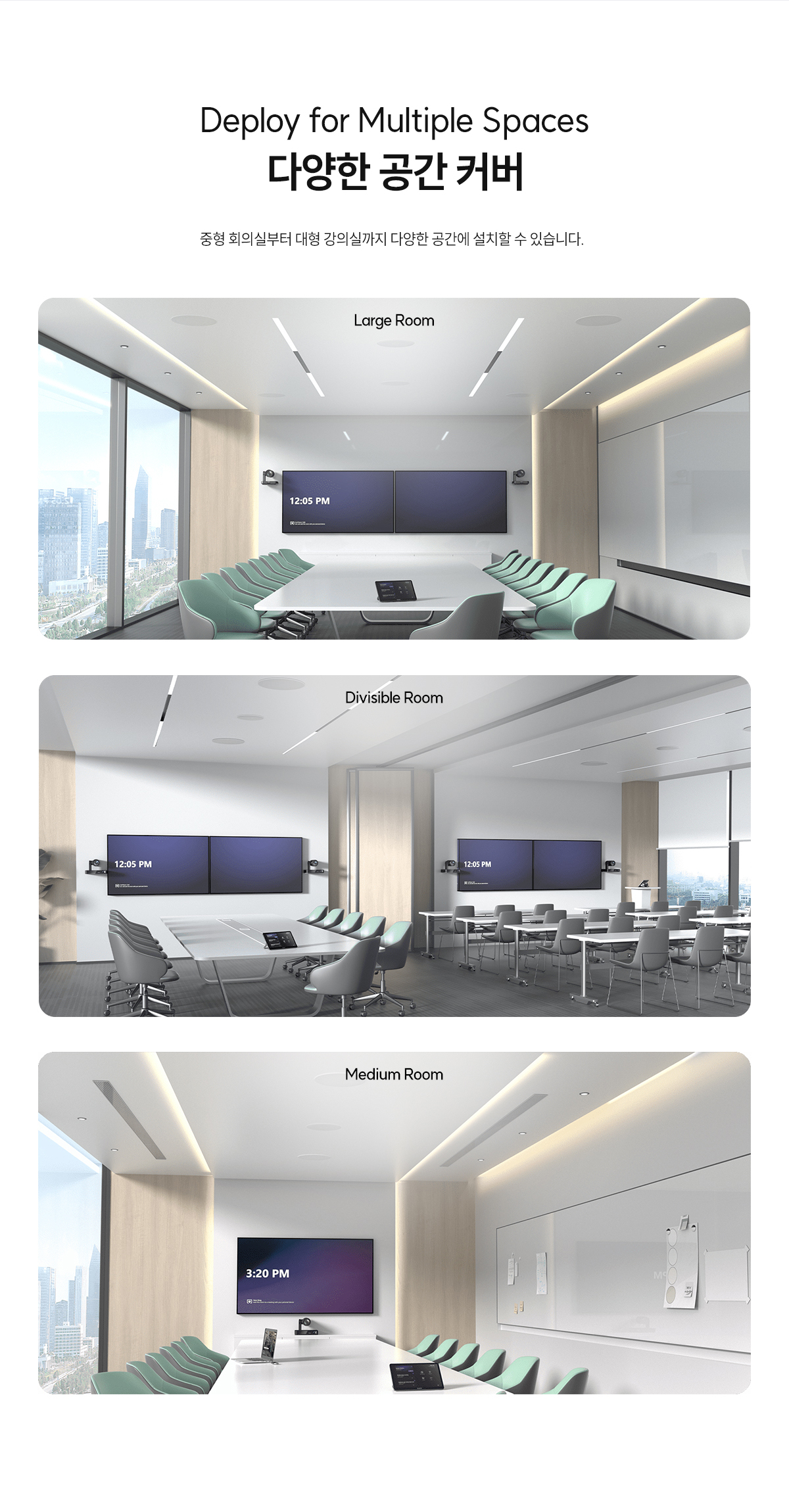

- 다양한 설치 옵션
- 매쉬 타입 마그네틱 커버 (블랙, 화이트)
Specifications
| Package Content | • SkySound CS10 Speaker • White Mesh Cover (Black Optional) • Quick Start Guide • Assembly Fixing Bracket • Dust Cover • Deployment Instruction Templete • Bracing Bridge (Optional) • Dust Cover ScrewX6 (M3X4CMHOZN3) |
| Audio Specifications | • Frequency Response (-6dB): 100-20kHz • Maximum SPL: - Continuous: 99dB @20W 1m - Sensitivity: 88dB@1m 1W |
| Speaker Specification | • LF: 5.7 inch (145 mm) woofer • HF: 1.1 inch (28 mm) tweeter • Nominal Impedance: 8Ω • Nominal Coverage Angle: 120 |
| Physical Features | • Operating Temperature: 0-50℃ • Storage Temperature: 0-50℃ • Operating Humidity: 5%~90% • Peak Power: 20W • Power Supply: PoE+ (IEEE 802.3at class 4) • Interface: RJ-45 |
| Product Specifications | • Size: - ф294XH125.8mm (with cover mesh） - ф287.2XH125mm (without cover mesh) • Weight: - 2808g (without cover mesh)； - 207g (Cover mesh) • Product Color: white/black • Cover Mesh Color: white/black • Product Materials: - Cover Mesh: PC/ABS Welded SPCC - Main Body Shell: PA (Polyamide) with 15% GF - Bottom Shell: aluminum alloy - Cover Plate: PC/ABS and SGCC • Plenum Rated UL 2043 (suitable for air handling spaces) |
| Logistic Information | • Box Size: 398mm X 310mm X 135mm • N.W/CTN: 2.462kg • G.W/CTN: 3.078kg |
