ZVC860 (Base-kit)

Transform Your Meetings

for Medium and Large Meeting Rooms

S98 구성

UVC86

MTouch plus

MCore Pro

RoomSensor

Key Features

Intelligent
AI 3.0

Multi-Camera
Integration

Future-proof
Computing

Seamless ProAV
Integration

Easy desigh
Deployment

  • 지능형 추적으로 더욱 자유로운 회의 경험
  • 넓고 유연한 회의 제어 환경
  • 다양한 오디오 및 연결 옵션 지원
  • 간편한 구축과 직관적인 사용성
  • 원격 디바이스 관리 지원

Specifications

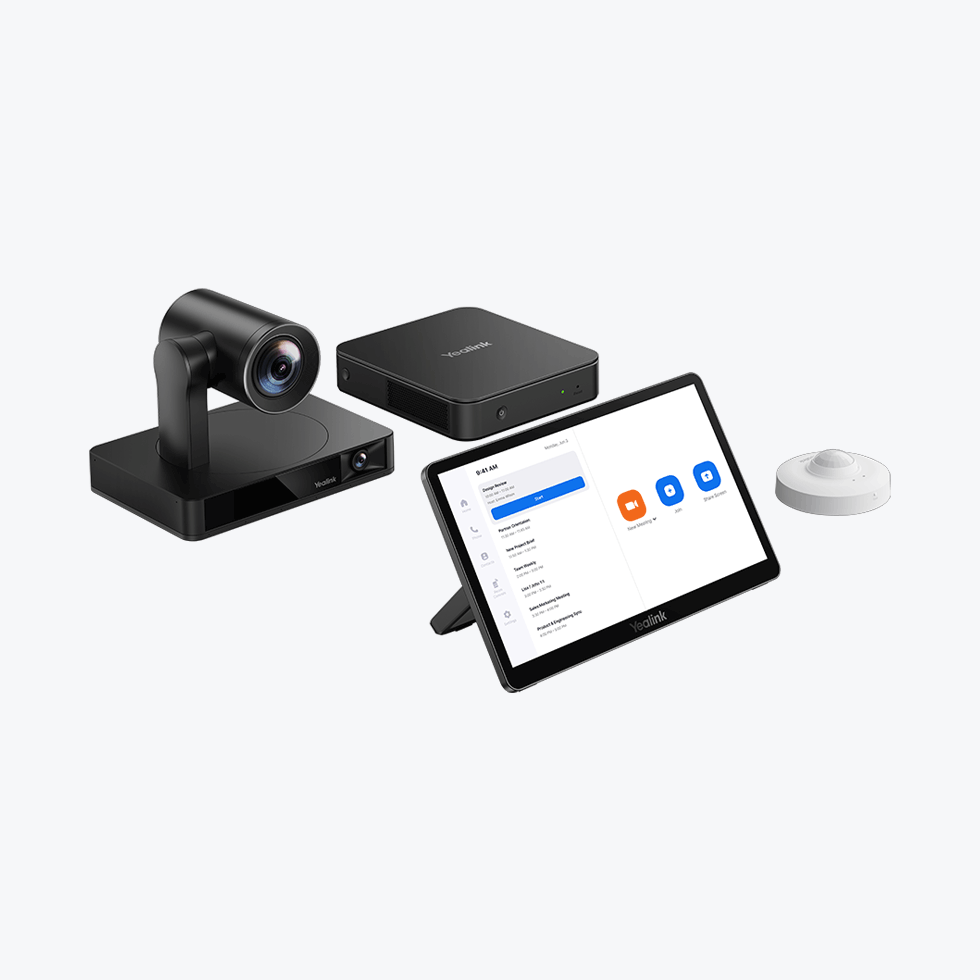

Package Content• MCore Pro, Gen-3 Mini-PC
• MTouch Plus, Gen-3 touch panel
• UVC86 USB PTZ camera
• RoomSensor
Preload• Windows 10 IoT Enterprise X64 / Windows 11* IoT Enterprise X64
• Windows 10 IoT Enterprise License
• Zoom Rooms App
• Yeallink RoomConnect
*Windows 11 will be supported in 23H

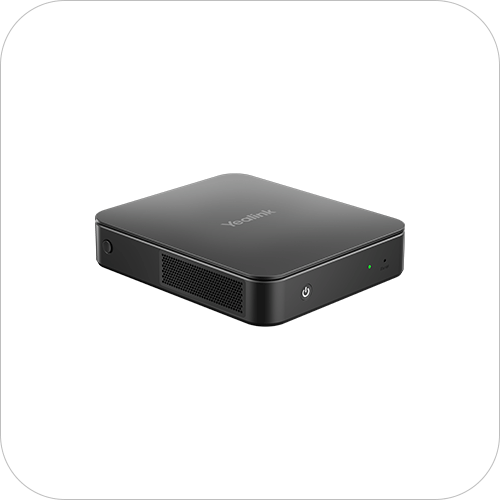

MCore Pro, Gen-3 Mini-PC• 11th Gen Intel® Core i5
• Memory: 8 GB (2 x 4GB)
• Storage: 128 GB SSD
• 3x HDMI video output with CEC supported
• TPM2.0
• Kernel DMA
• EDID
• Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax
• Bluetooth: BT 5.2
• 1 x Yealink MTouch port (RJ45), connect to MTouch Plus/MTouch E2
• 4 x USB 3.0 Type-A
• 1 x 10/100/1000M Ethernet port
• 1 x Power port
• 1 x Security lock slot, Integrated cable management
MTouch Plus Physical features:
• 11.6-inch narrow bezel IPS display
• Angle between screen and desktop (30° ~ 70°)
• Adjustable angle of support frame (50° ~ 180°)

Function features：
• 1920 x 1080 video resolution
• Support wired and wireless (with WPP30) content sharing
• Support an external PD power supply to power the sharing device
• Support HDMI/USB-C video input
• Support desktop placement, desktop fixed, and wall-mounted deployment
RoomSensor• Detection angle: 120°
• Adjustable detection angle: ±20°
• Operating temperature: 0-40℃
• Operating humidity: 10-95%

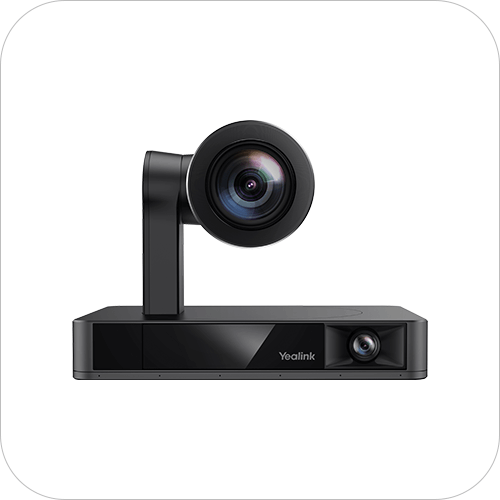

UVC86 USB PTZ Camera• 4K Sensor
• 20.4 × HD zoom (12x optical, 1.7x digital)
• Angle of view:
-90° DFOV, 81° HFOV, 50° VFOV ( Telephoto lens)
-120° DFOV, 110° HFOV, 78° VFOV (Panoramic lens)
• Auto-framing
• Speaker tracking
• Presenter tracking, support area trigger and gesture control
• Multi-focus
• Picture-in-picture
• Up to 9 preset positions can be set
• Support wireless BYOD*
• Horizontal rotation: 200°
• Vertical rotation: 130°
• 1 x HDMI output
• 1 x Yealink microphone port(RJ-45)
• 1 x USB 3.0 Type-B port
• 1 x USB 2.0 Type-A Port
• 1 x Power Port
• 1 x Security Lock
• 1 x Reset Hole
Package Features• N.W/CTN: 6.88 kg
• G.W/CTN: 7.54 kg
• Carton Meas: 420mm x 275mm x 387mm
