DeskVision A24

Desk Simplified Collaboration Optimized

Key Features

23.8-inch
Multi-touch Screen

Hybrid-Mode

Android OS & Peripheral
Hybrid Mode

All-in-one Design
Collaboration Display

USB-C Docking Power
Delivery for PC

12m_pickup

12-meter
Full Duplex

Stereo Speaker Qi
Wireless Charger

  • Teams / Zoom 디스플레이 인증
  • UC 워크스테이션 모드 지원
  • Full-HD 화상 통화 지원
  • 고품질 마이크 및 스피커 탑재
  • USB 도킹 스테이션 기능 지원
  • PC용 USB 전원 공급(USB PD) 지원
  • Qi 무선 충전 지원
  • Teams Room Android 인증 획득

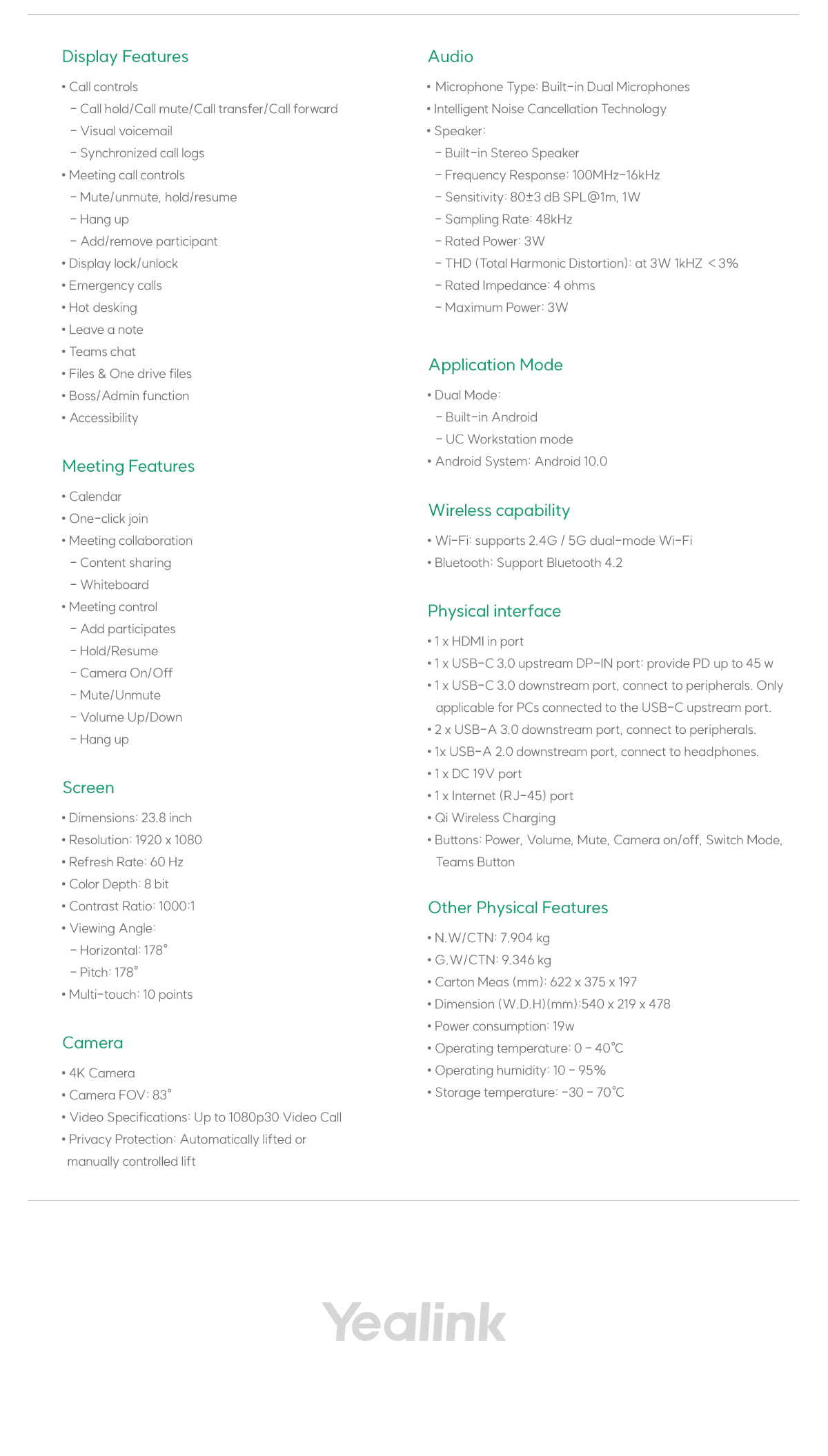

Specifications

Display
Features		• Call controls
- Call hold/Call mute/Call transfer/Call forward
- Visual voicemail
- Synchronized call logs
• Meeting call controls
- Mute/unmute, hold/resume
- Hang up
- Add/remove participant
• Display lock/unlock
• Emergency calls
• Hot desking
• Leave a note
• Teams chat
• Files & One drive files
• Boss/Admin function
• Accessibility
Meeting
Features		• Calendar
• One-click join
• Meeting collaboration
- Content sharing
- Whiteboard
• Meeting control
- Add participates
- Hold/Resume
- Camera On/Off
- Mute/Unmute
- Volume Up/Down
- Hang up
Screen• Dimensions: 23.8 inch
• Resolution: 1920 x 1080
• Refresh Rate: 60 Hz
• Color Depth: 8 bit
• Contrast Ratio: 1000:1
• Viewing Angle:
- Horizontal: 178°
- Pitch: 178°
• Multi-touch: 10 points

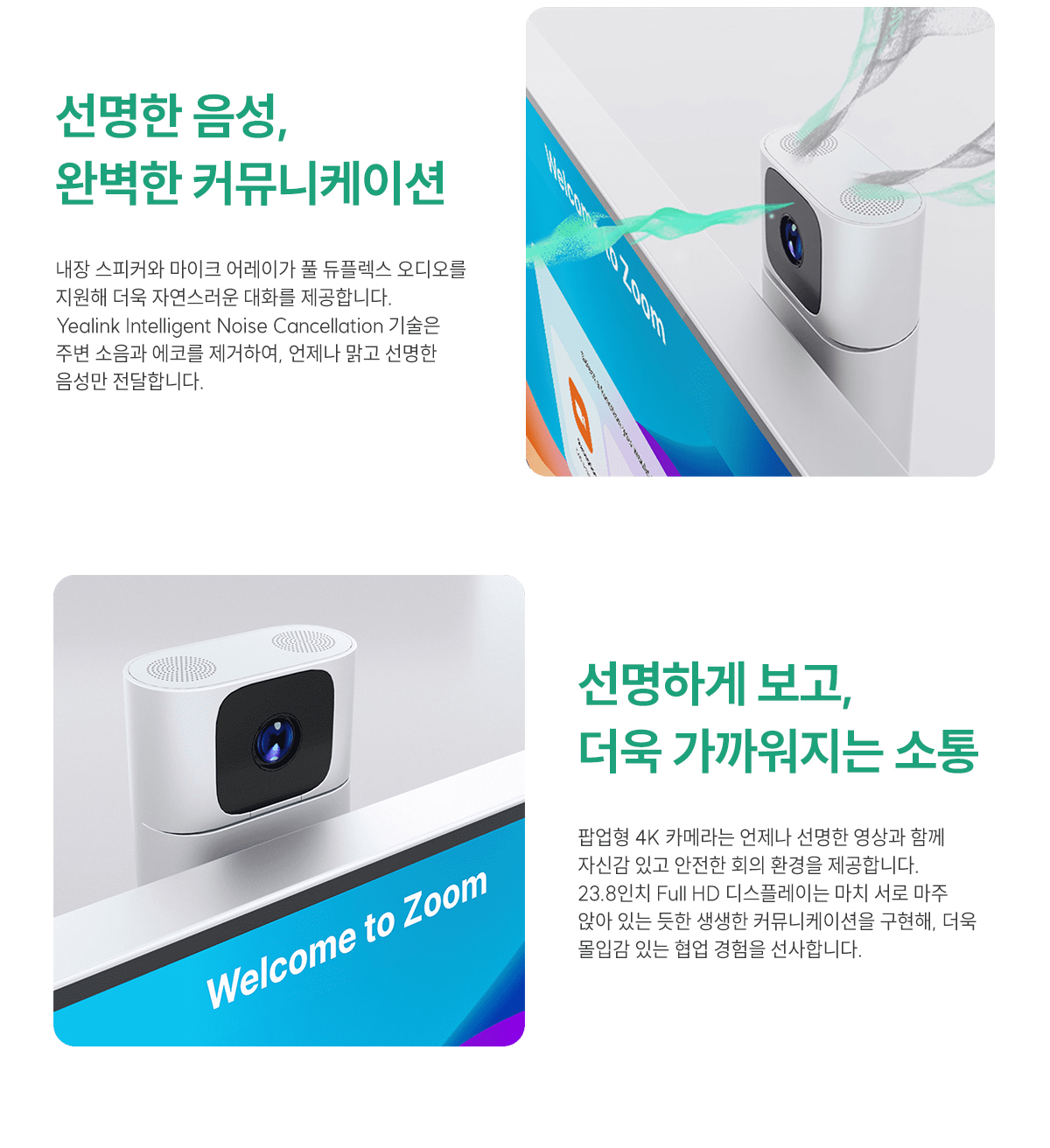

Camera• 4K Camera
• Camera FOV: 83°
• Video Specifications: Up to 1080p30 Video Call
• Privacy Protection: Automatically lifted or manually controlled lift
Audio• Microphone Type: Built-in Dual Microphones
• Intelligent Noise Cancellation Technology
• Speaker:
- Built-in Stereo Speaker
- Frequency Response: 100MHz-16kHz
- Sensitivity: 80±3 dB SPL@1m, 1W
- Sampling Rate: 48kHz
- Rated Power: 3W
- THD (Total Harmonic Distortion): at 3W 1kHZ ＜3%
- Rated Impedance: 4 ohms
- Maximum Power: 3W
Application
Mode		• Dual Mode:
- Built-in Android
- UC Workstation mode
• Android System: Android 10.0
Wireless
capability		• Wi-Fi: supports 2.4G / 5G dual-mode Wi-Fi
• Bluetooth: Support Bluetooth 4.2
Physical
interface		• 1 x HDMI in port
• 1 x USB-C 3.0 upstream DP-IN port: provide PD up to 45 w
• 1 x USB-C 3.0 downstream port, connect to peripherals. Only applicable for PCs connected to the USB-C upstream port.
• 2 x USB-A 3.0 downstream port, connect to peripherals.
• 1x USB-A 2.0 downstream port, connect to headphones.
• 1 x DC 19V port
• 1 x Internet (RJ-45) port
• Qi Wireless Charging
• Buttons: Power, Volume, Mute, Camera on/off, Switch Mode, Teams Button
Other Physical
Features		• N.W/CTN: 7.904 kg
• G.W/CTN: 9.346 kg
• Carton Meas (mm): 622 x 375 x 197
• Dimension (W.D.H)(mm):540 x 219 x 478
• Power consumption: 19w
• Operating temperature: 0 - 40℃
• Operating humidity: 10 - 95%
• Storage temperature: -30 - 70℃
