Key Features
4K-
Camera
Auto
Framing
Ultra-Silent
PTZ
8-microphone
array
Full
Duplex
6m Pick-up
Range
- 4K/30FPS
- 36x 하이브리드 줌 (12x 광학 & 3x 디지털)
- PTZ camera
- Auto-Framing
- 리모컨과 Yealink 소프트웨어를 통한 제어 및 설정
- 다양한 Yealink 오디오 장치 완벽 호환
- 통합 장치 관리
Specifications

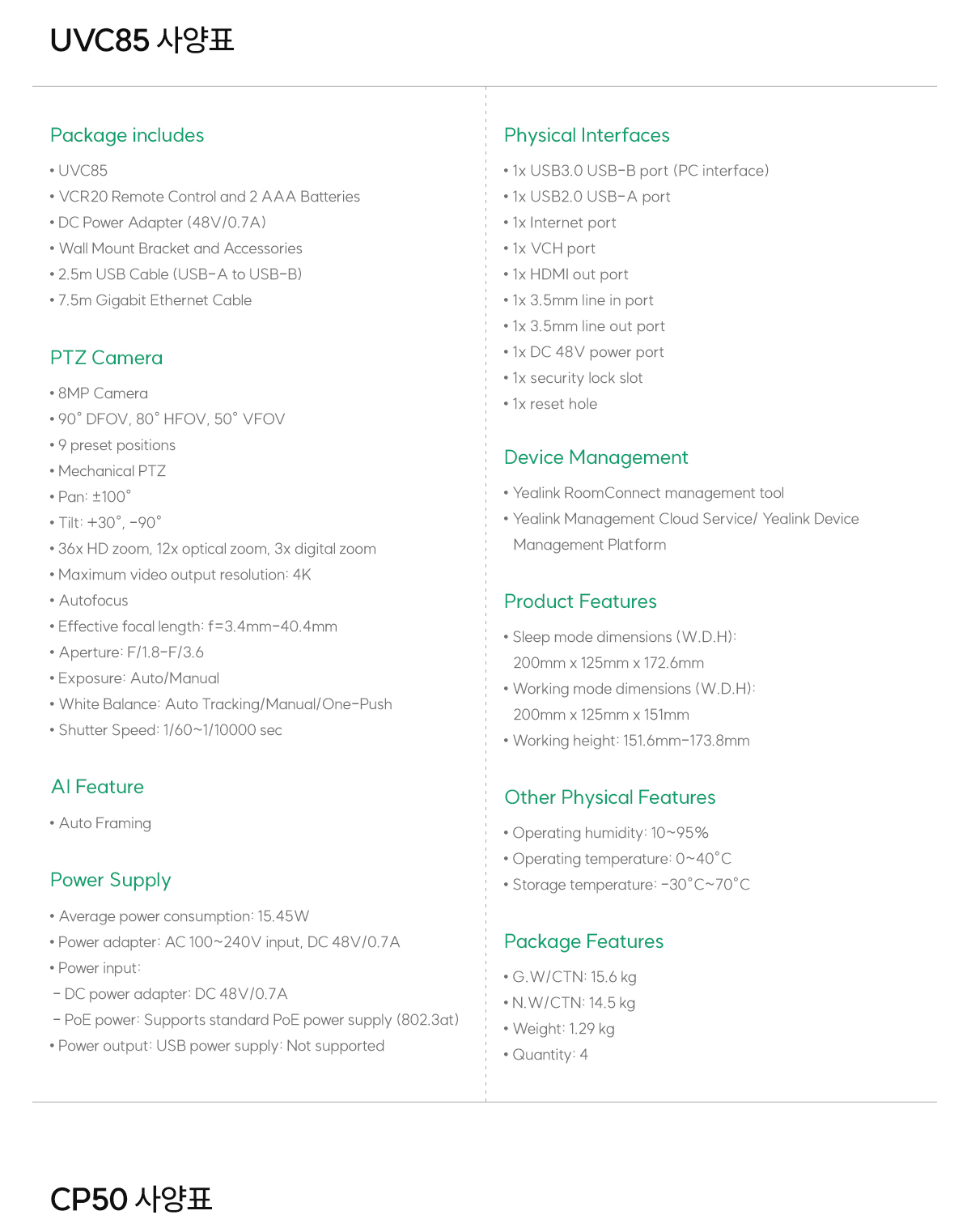

| UVC85 | |
| Package includes | • UVC85 • VCR20 Remote Control and 2 AAA Batteries • DC Power Adapter (48V/0.7A) • Wall Mount Bracket and Accessories • 2.5m USB Cable (USB-A to USB-B) • 7.5m Gigabit Ethernet Cable |
| PTZ Camera | • 8MP Camera • 90° DFOV, 80° HFOV, 50° VFOV • 9 preset positions • Mechanical PTZ • Pan: ±100° • Tilt: +30°, -90° • 36x HD zoom, 12x optical zoom, 3x digital zoom • Maximum video output resolution: 4K • Autofocus • Effective focal length: f=3.4mm-40.4mm • Aperture: F/1.8-F/3.6 • Exposure: Auto/Manual • White Balance: Auto Tracking/Manual/One-Push • Shutter Speed: 1/60~1/10000 sec |
| AI Feature | • Auto Framing |
| Power Supply | • Average power consumption: 15.45W • Power adapter: AC 100~240V input, DC 48V/0.7A • Power input: - DC power adapter: DC 48V/0.7A - PoE power: Supports standard PoE power supply (802.3at) • Power output: USB power supply: Not supported |
| Physical Interfaces | • 1x USB3.0 USB-B port (PC interface) • 1x USB2.0 USB-A port • 1x Internet port • 1x VCH port • 1x HDMI out port • 1x 3.5mm line in port • 1x 3.5mm line out port • 1x DC 48V power port • 1x security lock slot • 1x reset hole |
| Device Management | • Yealink RoomConnect management tool • Yealink Management Cloud Service / Yealink Device Management Platform |
| Product Features | • Sleep mode dimensions (W.D.H): 200mm x 125mm x 172.6mm • Working mode dimensions (W.D.H): 200mm x 125mm x 151mm • Working height: 151.6mm-173.8mm |
| Other Physical Features | • Operating humidity: 10~95% • Operating temperature: 0~40°C • Storage temperature: -30°C~70°C |
| Package Features | • G.W/CTN: 15.6 kg • N.W/CTN: 14.5 kg • Weight: 1.29 kg • Quantity: 4 |

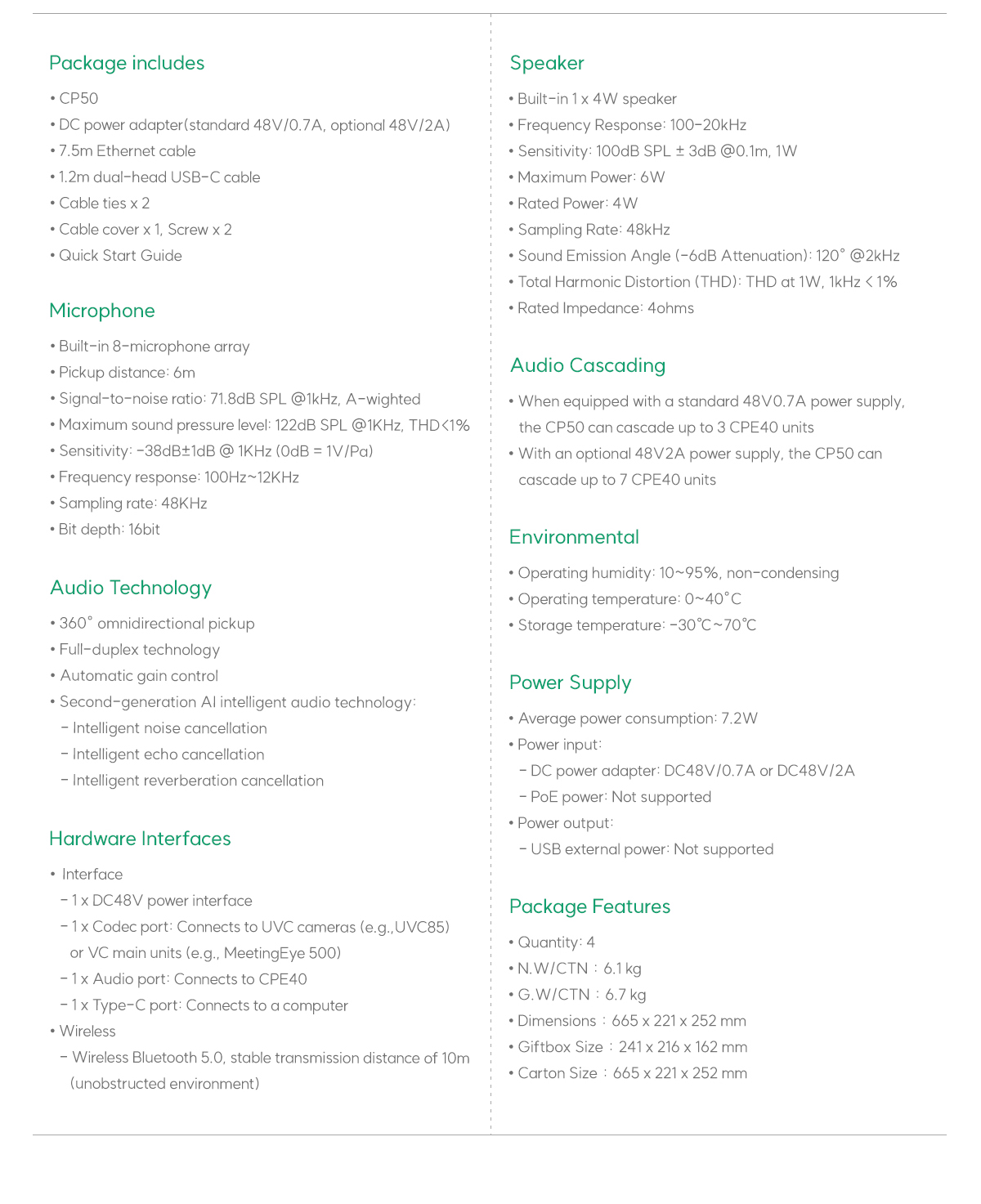

| CP50 | |
| Package includes | • CP50 • DC power adapter(standard 48V/0.7A, optional 48V/2A) • 7.5m Ethernet cable • 1.2m dual-head USB-C cable • Cable ties x 2 • Cable cover x 1, Screw x 2 • Quick Start Guide |
| Microphone | • Built-in 8-microphone array • Pickup distance: 6m • Signal-to-noise ratio: 71.8dB SPL @1kHz, A-wighted • Maximum sound pressure level: 122dB SPL @1KHz, THD<1% • Sensitivity: -38dB±1dB @ 1KHz (0dB = 1V/Pa) • Frequency response: 100Hz~12KHz • Sampling rate: 48KHz • Bit depth: 16bit |
| Audio Technology | • 360° omnidirectional pickup • Full-duplex technology • Automatic gain control • Second-generation AI intelligent audio technology: - Intelligent noise cancellation - Intelligent echo cancellation - Intelligent reverberation cancellation |
| Hardware Interfaces | • Interface - 1 x DC48V power interface - 1 x Codec port: Connects to UVC cameras (e.g.,UVC85) or VC main units (e.g., MeetingEye 500) - 1 x Audio port: Connects to CPE40 - 1 x Type-C port: Connects to a computer • Wireless - Wireless Bluetooth 5.0, stable transmission distance of 10m (unobstructed environment) |
| Speaker | • Built-in 1 x 4W speaker • Frequency Response: 100-20kHz • Sensitivity: 100dB SPL ± 3dB @0.1m, 1W • Maximum Power: 6W • Rated Power: 4W • Sampling Rate: 48kHz • Sound Emission Angle (-6dB Attenuation): 120° @2kHz • Total Harmonic Distortion (THD): THD at 1W, 1kHz < 1% • Rated Impedance: 4ohms |

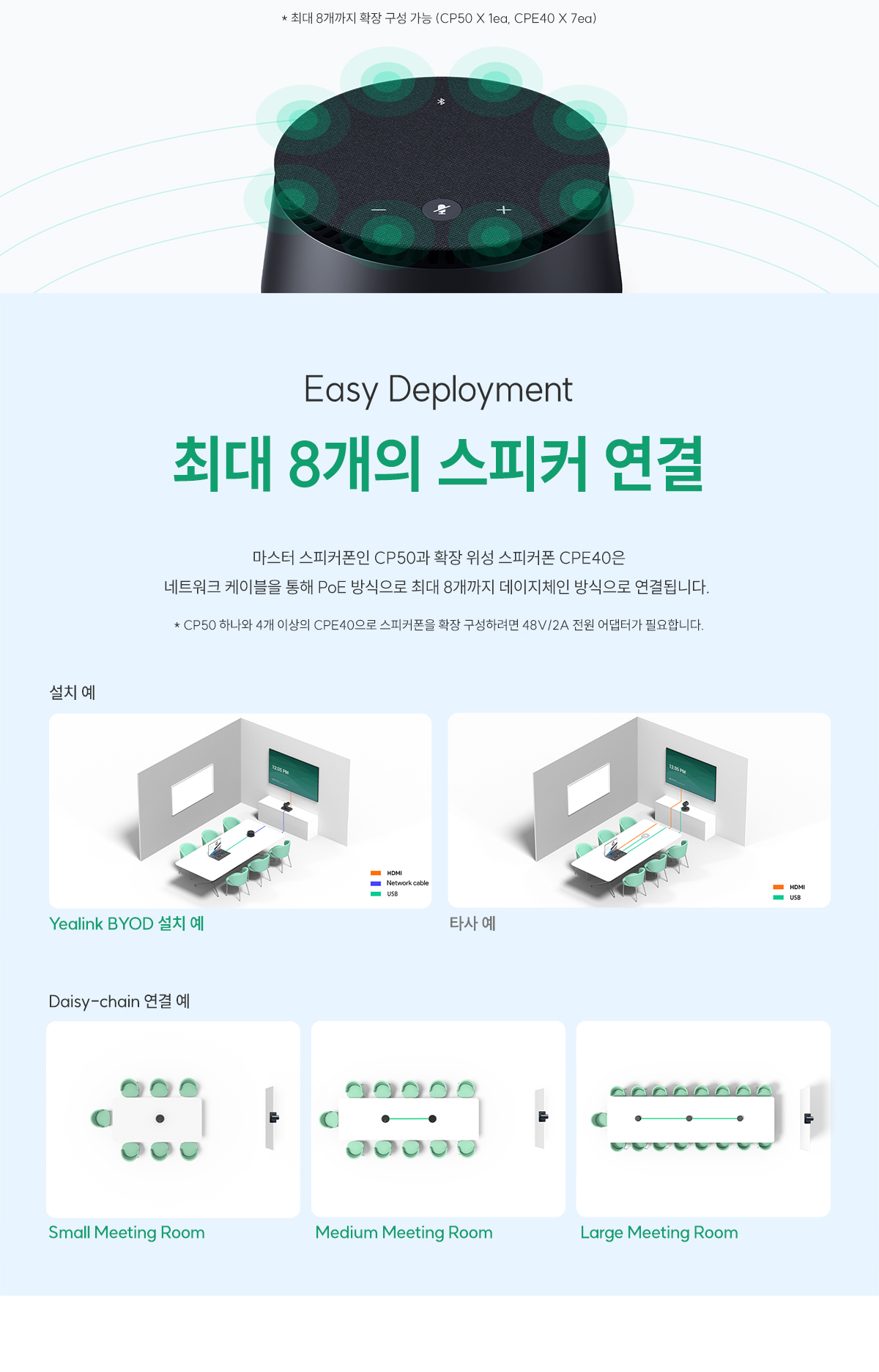

| Audio Cascading | • When equipped with a standard 48V0.7A power supply, the CP50 can cascade up to 3 CPE40 units • With an optional 48V2A power supply, the CP50 can cascade up to 7 CPE40 units |
| Environmental | • Operating humidity: 10~95%, non-condensing • Operating temperature: 0~40°C • Storage temperature: -30℃~70℃ |
| Power Supply | • Average power consumption: 7.2W • Power input: - DC power adapter: DC48V/0.7A or DC48V/2A - PoE power: Not supported • Power output: - USB external power: Not supported |
| Package Features | • Quantity: 4 • N.W/CTN：6.1 kg • G.W/CTN：6.7 kg • Dimensions：665 x 221 x 252 mm • Giftbox Size：241 x 216 x 162 mm • Carton Size：665 x 221 x 252 mm |
