Key Features
Ultra-HD 4K
Camera
Wide-angle
Lens
Auto
Framing
Speaker
Tracking
5 x e-PTZ
Camera
Smart Area
Exposure
- Ultra-HD 4K Camera
- 120° 초광각 시야각
- 오토 프레밍, 발언자 추적
- 자동 렌즈 캡
- 유선 네트워크, 원격 장치 관리
- 광범위한 화상회의 플랫폼 호환
- 8개의 마이크 어레이 내장
- 무선/유선 확장 마이크 (옵션)

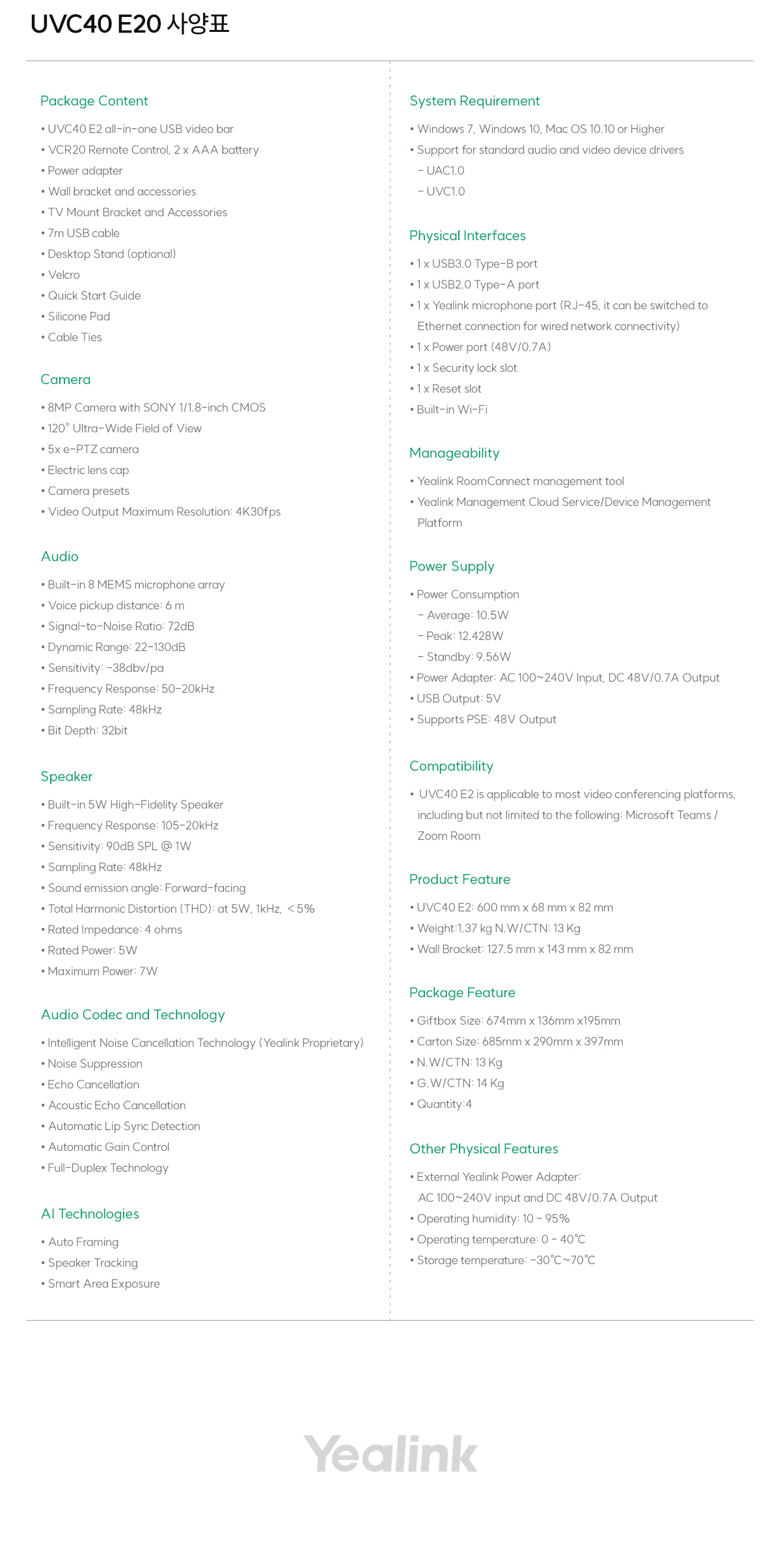

Specifications
| Package Content | • UVC40 E2 all-in-one USB video bar • VCR20 Remote Control, 2 x AAA battery • Power adapter • Wall bracket and accessories • TV Mount Bracket and Accessories • 7m USB cable • Desktop Stand (optional) • Velcro • Quick Start Guide • Silicone Pad • Cable Ties |
| Camera | • 8MP Camera with SONY 1/1.8-inch CMOS • 120° Ultra-Wide Field of View • 5x e-PTZ camera • Electric lens cap • Camera presets • Video Output Maximum Resolution: 4K30fps |
| Audio | • Built-in 8 MEMS microphone array • Voice pickup distance: 6 m • Signal-to-Noise Ratio: 72dB • Dynamic Range: 22-130dB • Sensitivity: -38dbv/pa • Frequency Response: 50-20kHz • Sampling Rate: 48kHz • Bit Depth: 32bit |
| Speaker | • Built-in 5W High-Fidelity Speaker • Frequency Response: 105-20kHz • Sensitivity: 90dB SPL @ 1W • Sampling Rate: 48kHz • Sound emission angle: Forward-facing • Total Harmonic Distortion (THD): at 5W, 1kHz, ＜5% • Rated Impedance: 4 ohms • Rated Power: 5W • Maximum Power: 7W |
| Audio Codec and Technology | • Intelligent Noise Cancellation Technology (Yealink Proprietary) • Noise Suppression • Echo Cancellation • Acoustic Echo Cancellation • Automatic Lip Sync Detection • Automatic Gain Control • Full-Duplex Technology |
| AI Technologies | • Auto Framing • Speaker Tracking • Smart Area Exposure |
| System Requirement | • Windows 7, Windows 10, Mac OS 10.10 or Higher • Support for standard audio and video device drivers - UAC1.0 - UVC1.0 |

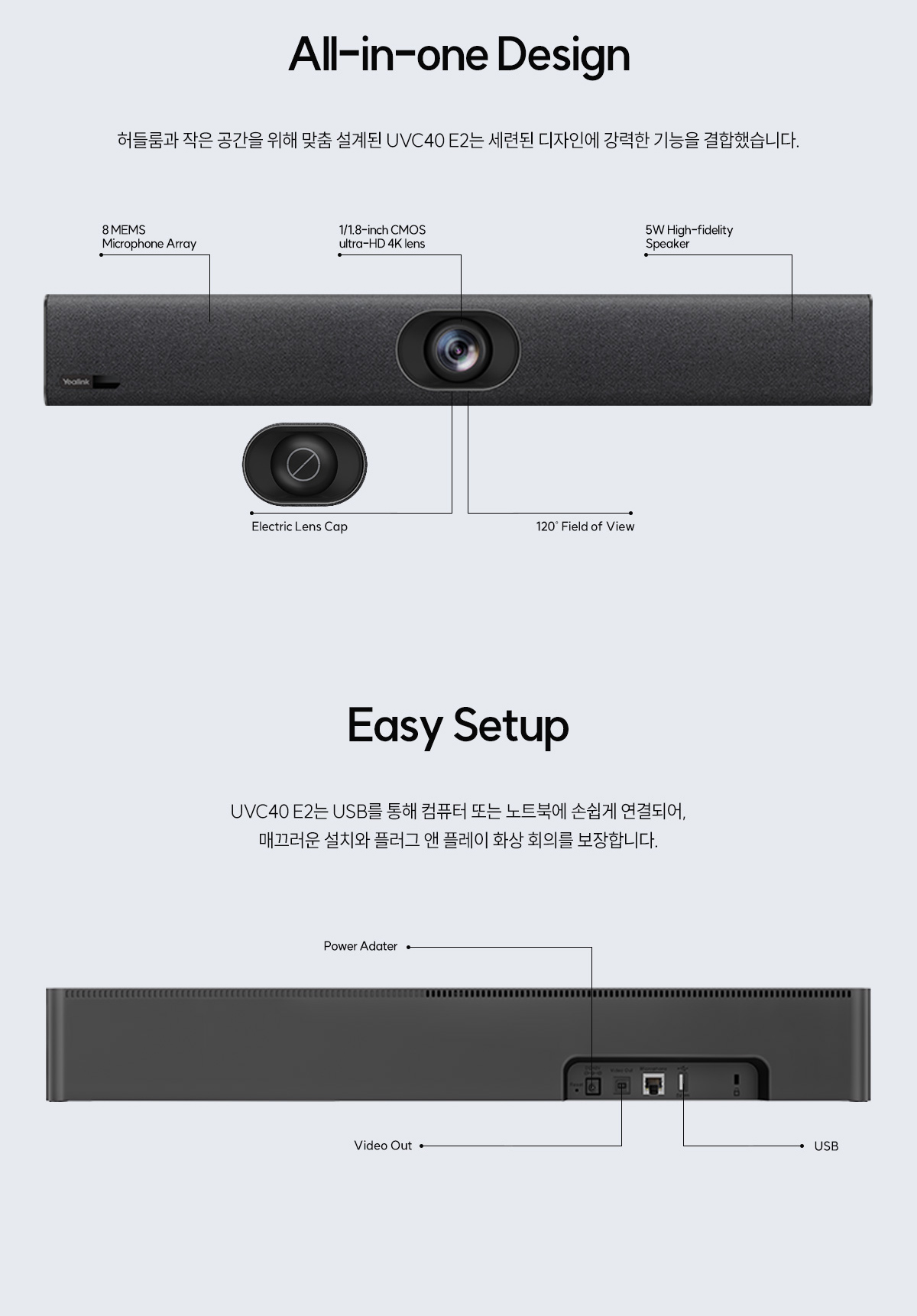

| Physical Interfaces | • 1 x USB3.0 Type-B port • 1 x USB2.0 Type-A port • 1 x Yealink microphone port (RJ-45, it can be switched to Ethernet connection for wired network connectivity) • 1 x Power port (48V/0.7A) • 1 x Security lock slot • 1 x Reset slot • Built-in Wi-Fi |
| Manageability | • Yealink RoomConnect management tool • Yealink Management Cloud Service/Device Management Platform |
| Power Supply | • Power Consumption - Average: 10.5W - Peak: 12.428W - Standby: 9.56W • Power Adapter: AC 100~240V Input, DC 48V/0.7A Output • USB Output: 5V • Supports PSE: 48V Output |
| Compatibility | • UVC40 E2 is applicable to most video conferencing platforms, including but not limited to the following: Microsoft Teams / Zoom Room |
| Product Feature | • UVC40 E2: 600 mm x 68 mm x 82 mm • Weight:1.37 kg N.W/CTN: 13 Kg • Wall Bracket: 127.5 mm x 143 mm x 82 mm |
| Package Feature | • Giftbox Size: 674mm x 136mm x195mm • Carton Size: 685mm x 290mm x 397mm • N.W/CTN: 13 Kg • G.W/CTN: 14 Kg • Quantity:4 |
| Other Physical Features | • External Yealink Power Adapter: AC 100~240V input and DC 48V/0.7A Output • Operating humidity: 10 - 95% • Operating temperature: 0 - 40℃ • Storage temperature: -30℃~70℃ |
