MeetingBar A30

All-in-One Video Bar

for medium rooms

Datasheet

Key Features

Qualcomm
SD845 chipset

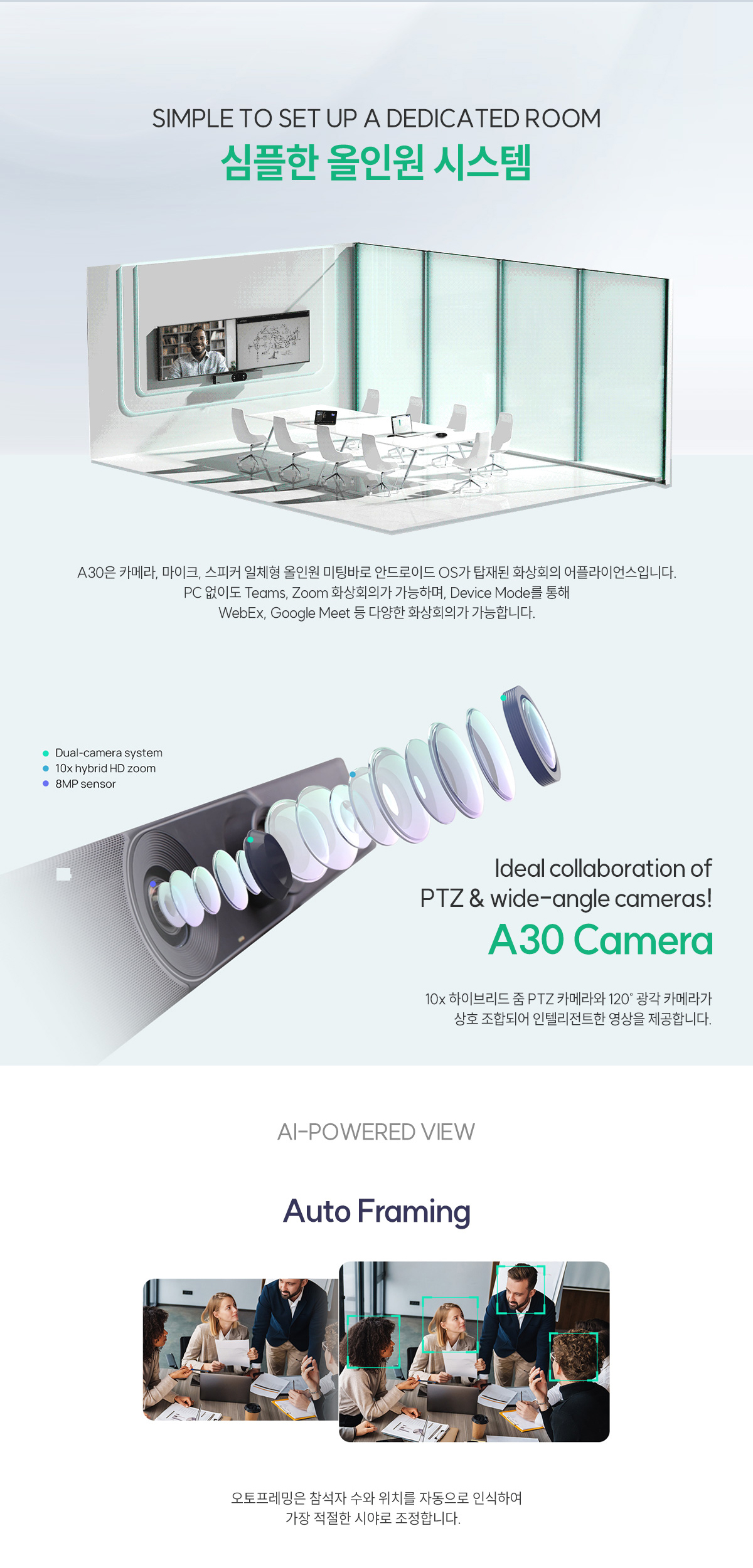

Dual Camera
Design

120° Wide
FoV

Auto
Framing

Speaker
Tracking

All-in-one
Design

  • 올인원 디자인
  • 듀얼 카메라 시스템
  • 120° 초광각 화각
  • 전동 프라이버시 셔터
  • 듀얼 디스플레이 지원
  • 자동 프레이밍 및 화자 추적 기능
  • Bluetooth 4.2 및 듀얼 밴드 Wi-Fi 내장
  • 무선 콘텐츠 공유 지원
  • 전자 화이트보드 기능
  • Microsoft Teams · Zoom · BlueJeans · RingCentral 공식 인증

Specifications

Dual Camera System• Wide Camera:
- 8MP Camera
- Field of view: 120°
- 4x e-PTZ Camera
• Telephoto Camera:
- 8MP Camera
- Field of view: 90°
- 10x Hybrid Zoom (3.5x optical, 3x digital)
- Horizontal Rotation Angle: +25°/-25°
- Vertically Rotation Angle: +16°/-16°
• Electric Privacy Shutter
• Intelligence Features
- Auto Framing
- Speaker Tracking
Audio• Built-in 8 MEMS microphone array
• Support extention mic
• Two Built-in 5W high fidelity speaker
• Yealink Noise Proof Technology
• Beamforming directed voice pickup technology
• Full-duplex
• Echo cancellation
Operating System• Android 9.0
Meeting Features• Calendar
• One-click join
• Meeting collaboration
- Content sharing
- Whiteboard
• Meeting control:
- Add participates
- Hold/Resume
- Camera On/Off
- Mute/Unmute
- Volume Up/Down
- Hang up
• Teams Edition
- Microsoft DM
- Proximity join
• Zoom Edition
- Zoom DM
- Direct sharing
Video Standard and
Network Suitability		• Video codecs:
H.264 High profile, H.264 SVC, H.264
MeetingBar A30 +
CTP18 Package		• Carton Meas:
923×495×327mm
Network and
Security Features		• Built-in dual-band Wi-Fi (2.4GHz/5GHz)
• Built-in Bluetooth
• IPv4 and IPv6, DHCP/static IP
• HTTP/HTTPS web server
• SRTP/TLS, AES 256-bit encryption
• QoS: 802.1p/q, Diff-serv
• VLAN, LLDP
• IEEE802.1X
- EAP-MD5/EAP-TLS
- PEAP-MSCHAPv2
- EAP-TTLS/EAP-MSCHAPv2
• Network diagnosis: Ping, Trace route
• Time and date synchronization using SNTP
• Built-in certificate
• Simple Certificate Enrollment Protocol (SCEP) * coming soon
Connections• 2 x HDMI output (CEC supported)
• HDMI input (through the VCH51 Sharing Kit)
• 1 x Line-in (3.5mm)
• 1 x Line-out (3.5mm)
• 2 x USB 2.0
• 1 x 10/100M/1000M Ethernet port
• 1 x Yealink extension port (RJ-45)
• 1 x Power port
• 1 x Security lock slot
• 1 x Reset slot
Other Physical Features• External Yealink Power Adapter: AC 100~240V input and DC 48V/0.7A Output
• USB Output: 5V 0.5A
• Power consumption (PSU): Idle < 13W; Normal operating: 15W; MAX: 16W
• Dimension (W.D.H): 700 mm×98 mm×121 mm
• Operating humidity: 10~95%
• Operating temperature: 0~40°C
• Storage temperature: -30~70°C
MeetingBar A30 Package• Package contents:
- MeetingBar A30 endpoint
- 3m Ethernet cable
- 2×1.8m HDMI cable
- Mounting Bracket and Accessories
- Power adapter
- Quick Start Guide

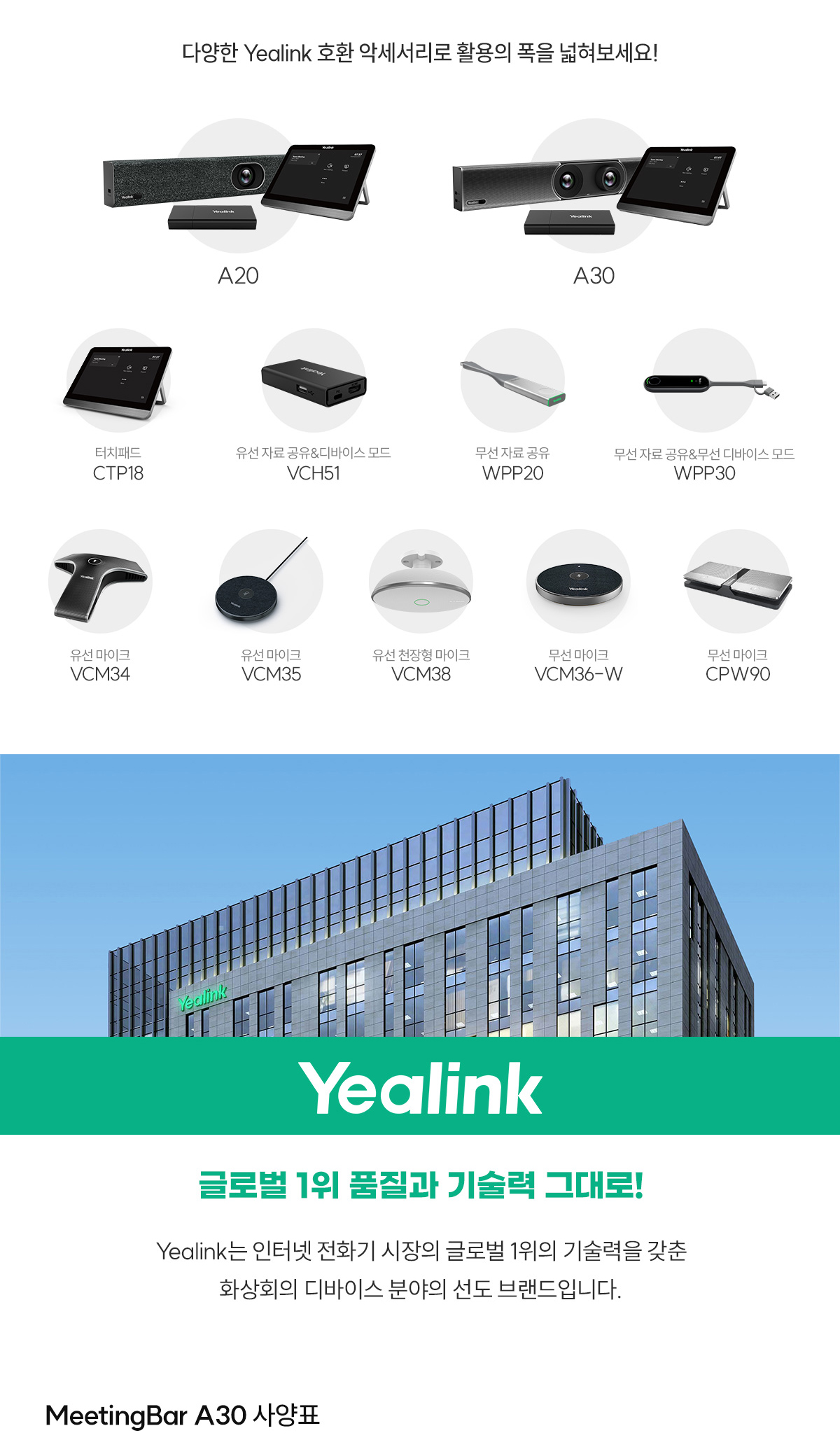

- Controller (optional):
CTP18 Touch Panel
VCR20 Remote Control
- Content sharing(optional):
VCH51 Sharing Kit (HDMI/USB-C) ②
WPP20 Wireless Presentation Pod ③
• Carton Meas: 903×325×306mm
