Key Features
4K
Camera
All-in-one
Design
120° Wide
FoV
Noise
Cancellation
Auto
Framing
Speaker
Tracking
- 올인원(All-in-One) 디자인
- 4K 카메라 탑재
- 전동 프라이버시 셔터 지원
- 오토 프레이밍 및 화자 추적 기능 지원
- Bluetooth 내장
- Wi-Fi 내장
- 콘텐츠 공유 지원
- Microsoft Teams 및 Zoom 인증 획득

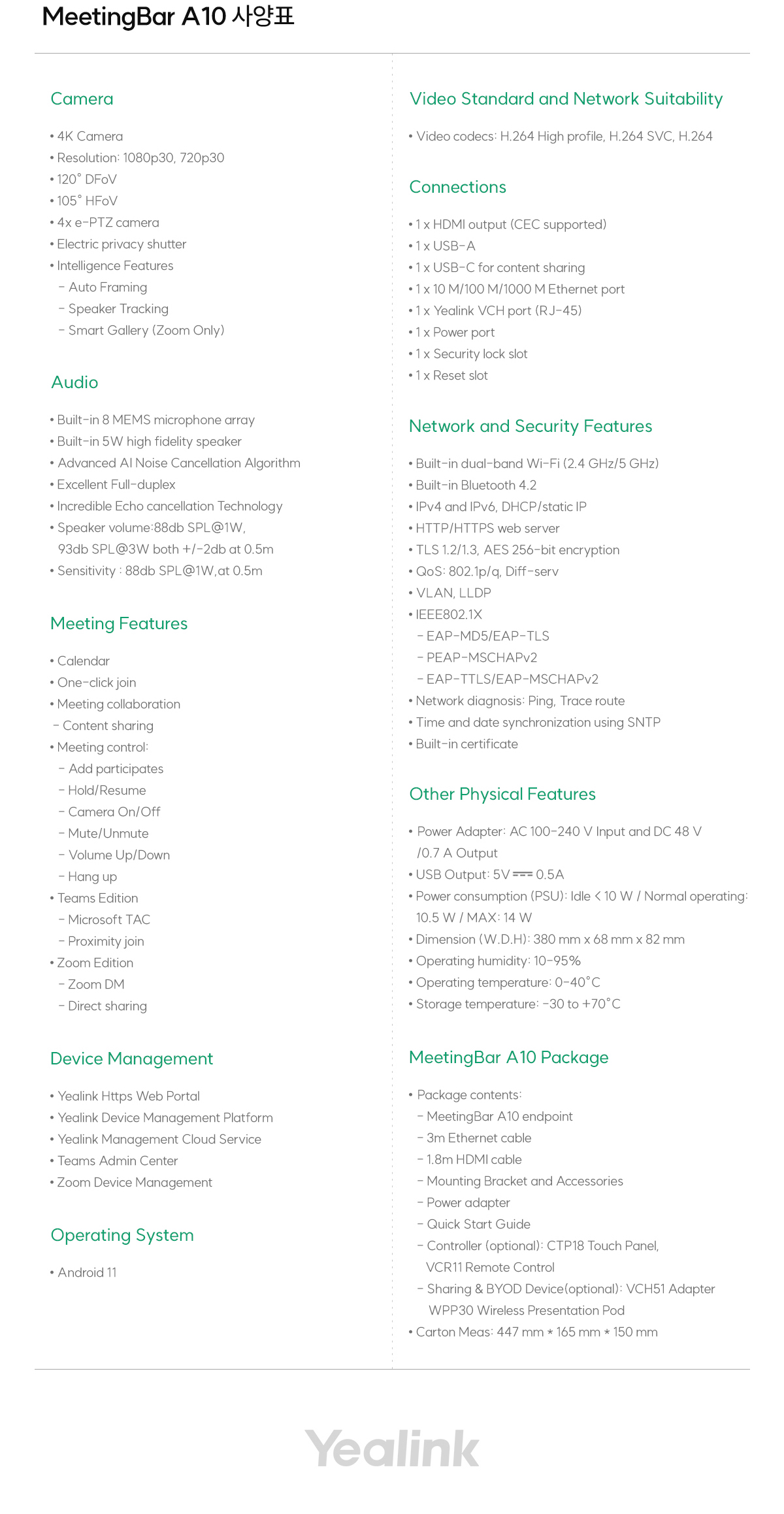

Specifications
| Camera | • 4K Camera • Resolution: 1080p30, 720p30 • 120° DFoV • 105° HFoV • 4x e-PTZ camera • Electric privacy shutter • Intelligence Features - Auto Framing - Speaker Tracking - Smart Gallery (Zoom Only) |
| Audio | • Built-in 8 MEMS microphone array • Built-in 5W high fidelity speaker • Advanced AI Noise Cancellation Algorithm • Excellent Full-duplex • Incredible Echo cancellation Technology • Speaker volume:88db SPL@1W, 93db SPL@3W both +/-2db at 0.5m • Sensitivity : 88db SPL@1W,at 0.5m |
| Operating System | • Android 11 |
| Meeting Features | • Calendar • One-click join • Meeting collaboration - Content sharing • Meeting control: - Add participates - Hold/Resume - Camera On/Off - Mute/Unmute - Volume Up/Down - Hang up • Teams Edition - Microsoft TAC - Proximity join • Zoom Edition - Zoom DM - Direct sharing |
| Video Standard and Network Suitability | • Video codecs: H.264 High profile, H.264 SVC, H.264 |
| Device Management | • Yealink Https Web Portal • Yealink Device Management Platform • Yealink Management Cloud Service • Teams Admin Center • Zoom Device Management |
| Network and Security Features | • Built-in dual-band Wi-Fi (2.4 GHz/5 GHz) • Built-in Bluetooth 4.2 • IPv4 and IPv6, DHCP/static IP • HTTP/HTTPS web server • TLS 1.2/1.3, AES 256-bit encryption • QoS: 802.1p/q, Diff-serv • VLAN, LLDP • IEEE802.1X - EAP-MD5/EAP-TLS - PEAP-MSCHAPv2 - EAP-TTLS/EAP-MSCHAPv2 • Network diagnosis: Ping, Trace route • Time and date synchronization using SNTP • Built-in certificate |
| Other Physical Features | • Power Adapter: AC 100-240 V Input and DC 48 V/0.7 A Output • USB Output: 5V 0.5A • Power consumption (PSU): Idle < 10 W / Normal operating: 10.5 W / MAX: 14 W • Dimension (W.D.H): 380 mm x 68 mm x 82 mm • Operating humidity: 10-95% • Operating temperature: 0-40°C • Storage temperature: -30 to +70°C |
| Connections | • 1 x HDMI output (CEC supported) • 1 x USB-A • 1 x USB-C for content sharing • 1 x 10 M/100 M/1000 M Ethernet port • 1 x Yealink VCH port (RJ-45) • 1 x Power port • 1 x Security lock slot • 1 x Reset slot |
| MeetingBar A10 Package | • Package contents: - MeetingBar A10 endpoint - 3m Ethernet cable - 1.8m HDMI cable - Mounting Bracket and Accessories - Power adapter - Quick Start Guide - Controller (optional): CTP18 Touch Panel, VCR11 Remote Control - Sharing & BYOD Device(optional): VCH51 Adapter WPP30 Wireless Presentation Pod • Carton Meas: 447 ×165×150 mm |
