Key Features
4×4 Dante
Channel
A/V to
USB
One Software
Configuration
One-button
Deployment
Intelligent
Design
- 회의 통합을 위한 오디오 및 비디오 데이터의 USB 변환 지원
- 1개의 Dante 마이크 또는 최대 4개의 YeaAudio 마이크와 호환
- AES67 및 Dante 프로토콜 지원 (4 × 4 Dante 채널)

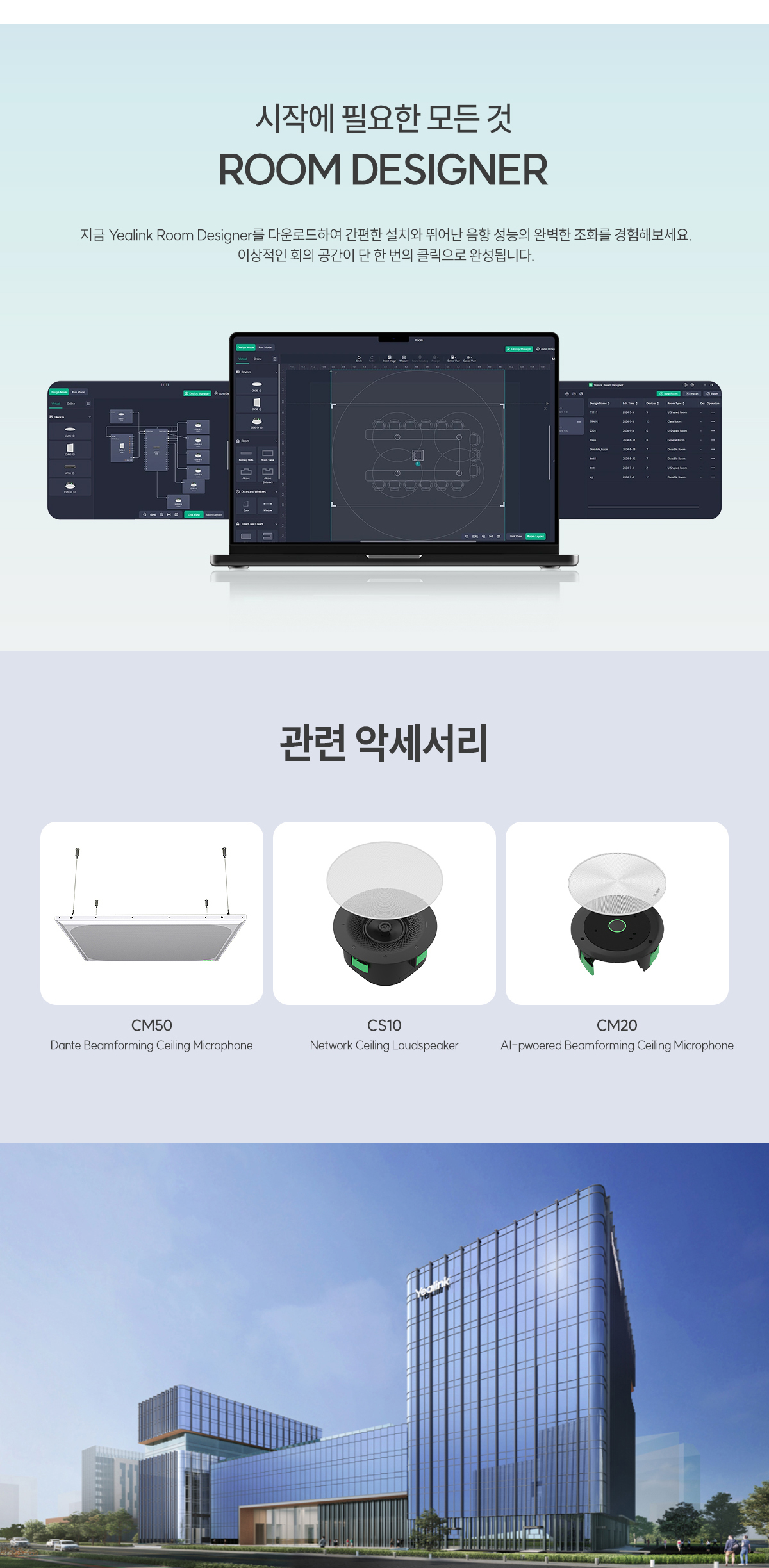

- Yealink Room Designer 소프트웨어와 호환
Specifications
| Dante Channels | • Input Channels : 4 • Output Channels : 4 • Frequency Response : 100 Hz - 20 kHz • THD+N : ≤0.1% • Sampling Rate : 48 kHz • Bit Depth : 4 bit • Dynamic Range : 97dB |
| USB Channels | • Sampling Rate : 48 kHz/16 kHz • Bit Depth : 16 bit/24 bit |
| Analog Channels | • Input Channel : 1 × 3-pin Phoenix connector analog input • Output Channel : 1 × 5-pin Phoenix connector analog output • Frequency Response : 100 Hz - 20 kHz • THD+N : ≤1% • Input Dynamic Range : 92 dB • Output Dynamic Range : 93 dB • Equivalent Input Noise : -86 dBu • Analog Input Gain Range : 0 to 11 dB • Analog Output Limiting Range : -10dBV to +4dBu |
| Networking | • Cable Requirements : Cat5e or higher (shielded cable recommended) • Connector Type : RJ45 |
| Logistics Info | • Package Dimensions : 191 × 125 × 88 mm • Gross Weight : 616 g • Net Weight : 315 g |
| Product Info | • Product Dimensions : 150 × 100 × 28 mm • Product Weight : 315 g • Material : PC+ABS • Operating Temperature : 0 - 40 ℃ • Operating Humidity : 0 - 95 %RH • Power Supply : POE (Power over Ethernet) • Power Consumption (Full Load) : 13 W • Power Consumption (No Load) : 8 W |
