MVC S90
For Microsoft Teams Rooms System
for Boardrooms

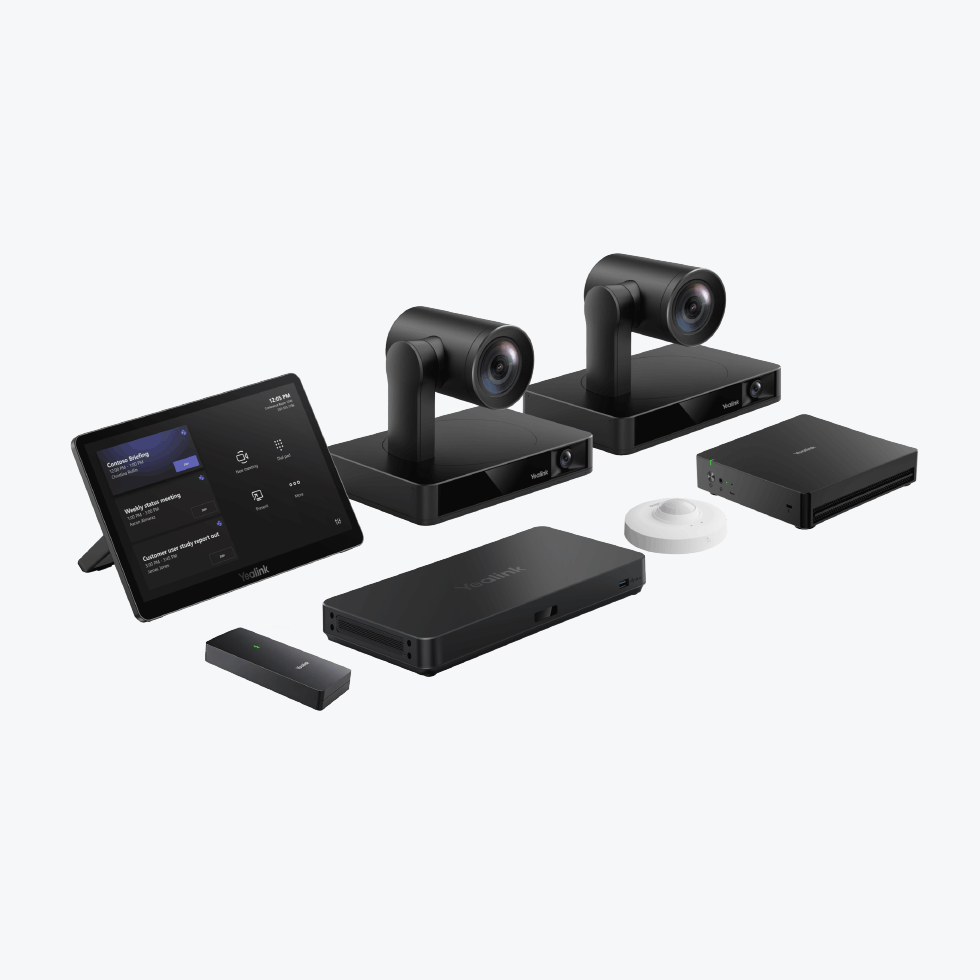

S98 구성
UVC86 x 2
MTouch plus
MCore 4
AVHub
VCH51 Pro
RoomSensor
Key Features
Intelligent
AI 3.0
Multi-Camera
Integration
Future-proof
Computing
Seamless ProAV
Integration
Easy desigh
Deployment
- 멀티 카메라 솔루션 및 유연한 레이아웃 지원
- 지능형 트래킹으로 핸즈프리 회의 구현
- 뛰어난 데이터 처리 성능
- Microsoft Teams 네이티브 통합을 통한 끊김 없는 회의 경험
- 실시간 콘텐츠 공유를 통한 향상된 협업
- 간편한 구축 및 쉬운 사용성
- 원격 장치 관리 지원
Specifications
| Package Content | • MCore 4 • MTouch plus • RoomSensor • UVC86 x 2 • AVHub • VCH51 Pro |
| Preload | • Windows 11 IoT enterprise X64 • Windows 11 IoT enterprise license • Microsoft Teams rooms app • Yealink RoomConnect |
| MCore 4, Gen-4 Mini-PC | • Processor: Intel Ultra5 125H • Memory: 16GB(2*8GB) DDR5 • Storage: 256GB SSD BIOS feature: • 3x HDMI video output - CEC - EDID • TPM2.0 • Kernel DMA Interfaces: • 1 x HDMI-Out 2.1 port • 2 x HDMI-Out 2.0 port • 1 x HDMI-In port • 4 x USB3.0 type-A port • 1 x MTouch port (RJ-45) • 1 x LAN port for AV network • 1 x power supply port • 1 x 3.5mm headphone port • 1 x reset port • 1 x security slot • WiFi: IEEE 802.11 a/b/g/n/ac/ax • Bluetooth: BT 5.2 |
| MTouch Plus | Physical features: • 11.6-inch narrow bezel IPS display • Angle between screen and desktop (30° ~ 70°) • Adjustable angle of support frame (50° ~ 180°) Function features： • 1920 x 1080 video resolution • Support wired and wireless (with WPP30) content sharing • Support an external PD power supply to power the sharing device • Support HDMI/USB-C video input • Support desktop placement, desktop fixed, and wall-mounted deployment |
| RoomSensor | • Detection angle: 120° • Adjustable detection angle: ±20° • Operating temperature: 0-40℃ • Operating humidity: 10-95% |
| UVC86 USB PTZ Camera | Camera: • 4K sensor • 20.4 × HD zoom (12x optical, 1.7x digital) • 90° DFOV, 81° HFOV, 50° VFOV (Telephoto lens) • 120° DFOV, 110° HFOV, 78° VFOV (Panoramic lens) • Up to 9 preset positions can be set • Horizontal rotation: 200° • Vertical rotation: 130° AI feature: • Auto-framing • Speaker tracking • Presenter tracking, support area trigger, and gesture control • Multi-focus • Picture-in-picture Interfaces: • 1 x HDMI output • 1 x Yealink microphone port (RJ-45) • 1 x USB 3.0 type-B port • 1 x USB 2.0 type-A Port • 1 x power port • 1 x security lock • 1 x reset hole |

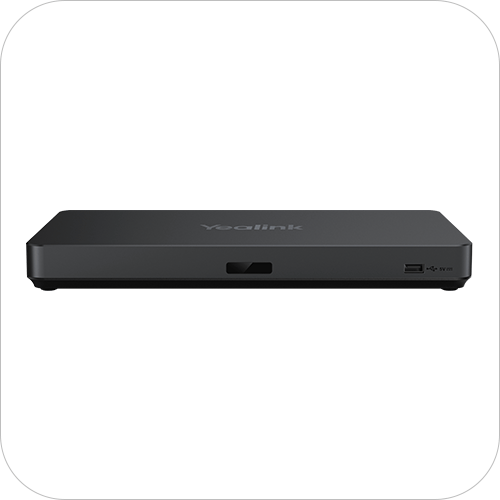

| AVHub, audio and video processor | Interfaces: • 2 x USB-A port • 1 x USB-B port • 1 x codec port • 7 x Yealink VCH port (RJ-45) • 1 x RCA in/out interface • 1 x 6.3mm line in interface • 1 x 6.3mm line out interface • 1 x power interface Function features： • Dividable and merging meeting rooms are supported • Support intelligent multi-speaker tracking |
| VCH51 Pro | Interfaces: •1 x 1000Mbps RJ45 port (IEEE 802.3af, full-duplex) •1 x USB 2.0 Type C (with DP video input) •1 x PD power port Physical Features: •Operating humidity: 10 - 95% •Operating temperature: 0 - 40℃ •Dimension (W.D.H): 144 x 65 x 18 mm |
